The Installation¶

This page will guide you through the modchip installation process on "Normal" model Switch consoles. Everything you need will be listed and pictures of what your solder joints should (roughly) look like will be posted by each step. Specific steps such as photos of the screws you need to unscrew aren't mentioned here as they can be found on guides from iFixit (for example). It's expected for you to know what to unscrew.

Diode reading values¶

These values can differ from console to console. If your modchip installation works fine and doesn't match these exact values, it's not an issue. These values can act as "indicators" about what you might expect.

Requirements:¶

• A soldering iron with a small(er) tip (preferably temperature controlled that can reach 350C consistently)
• Good quality flux
• The right screwdriver bits (+00 and Y1.5 bits)
• Good quality 34-38 awg wire (such as Kynar wire, other wire can work as long as it's single core)
• Thermal paste (non-conductive)
• Isopropyl Alcohol (preferably 95-99% IPA)
• Your modchip (including the SoC ribbon cable)
• Kapton tape (optional, but recommended)
• Toothpicks/Q-tips (to remove the thermal paste between the capacitors on the SoC)
• Soldering tin (leaded is recommended, unleaded will work depending on your skill level)
• Double sided tape (for adhering the modchip to the SoC/RAM IHS)
• A fume extractor (for your own health and safety)
• A microscope (optional but recommended)
• UV Solder mask (optional but recommended)

Instructions:¶

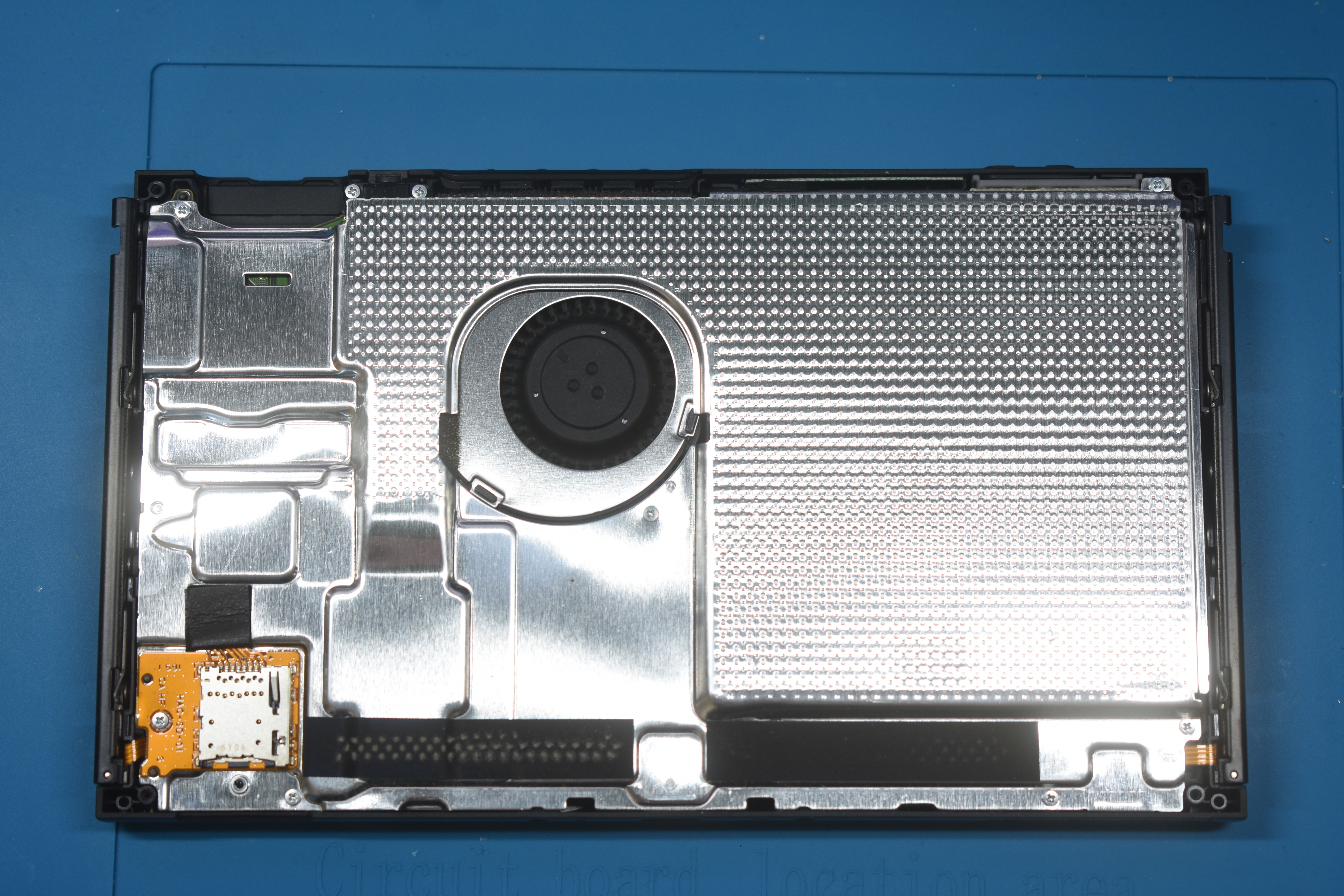

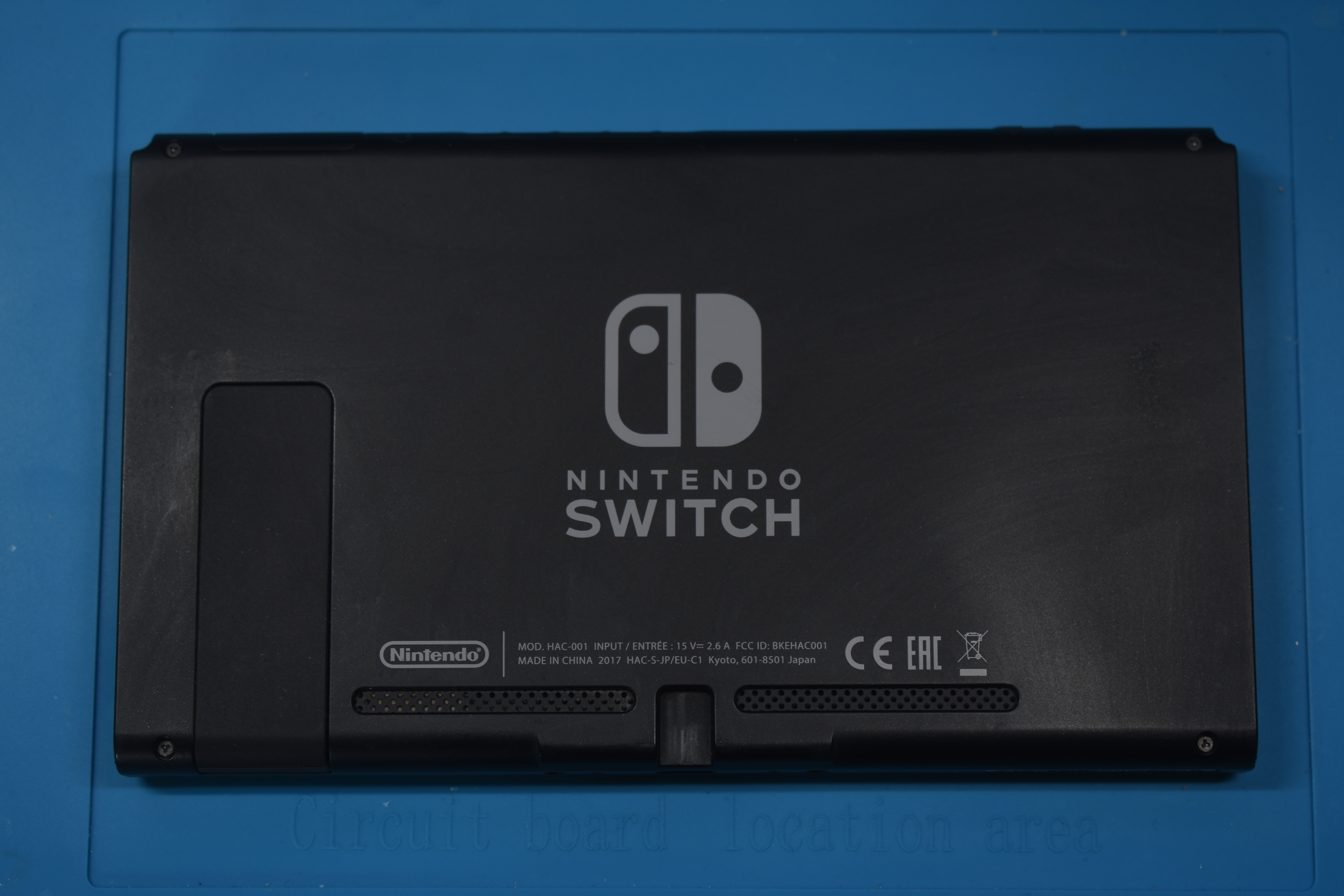

1. Unscrew and remove the Switch's backplate. Ensure you remove both middle screws on either side of the console, the screw at the top of the console, the two screws at the bottom of the console and the screw underneath the kickstand.

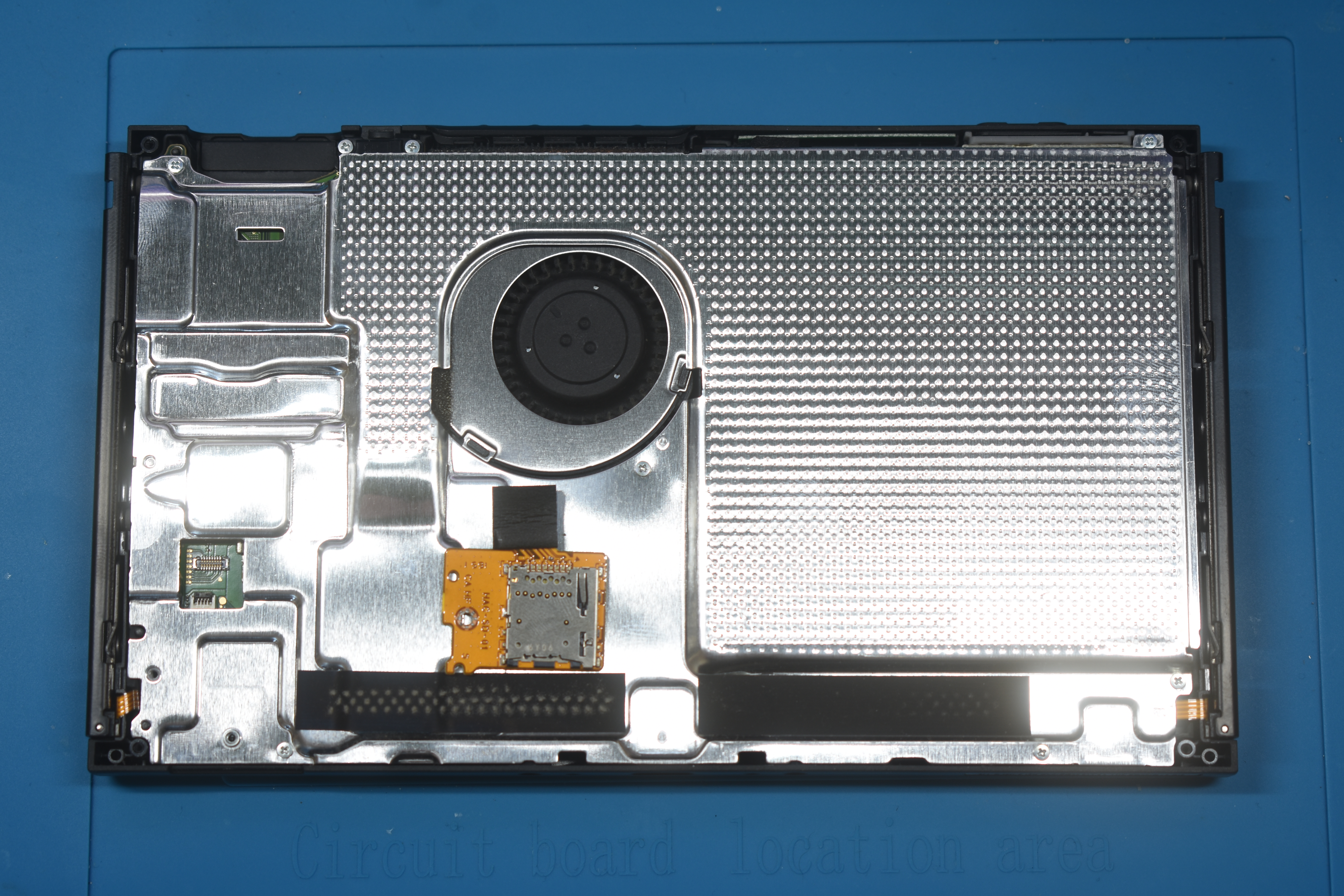

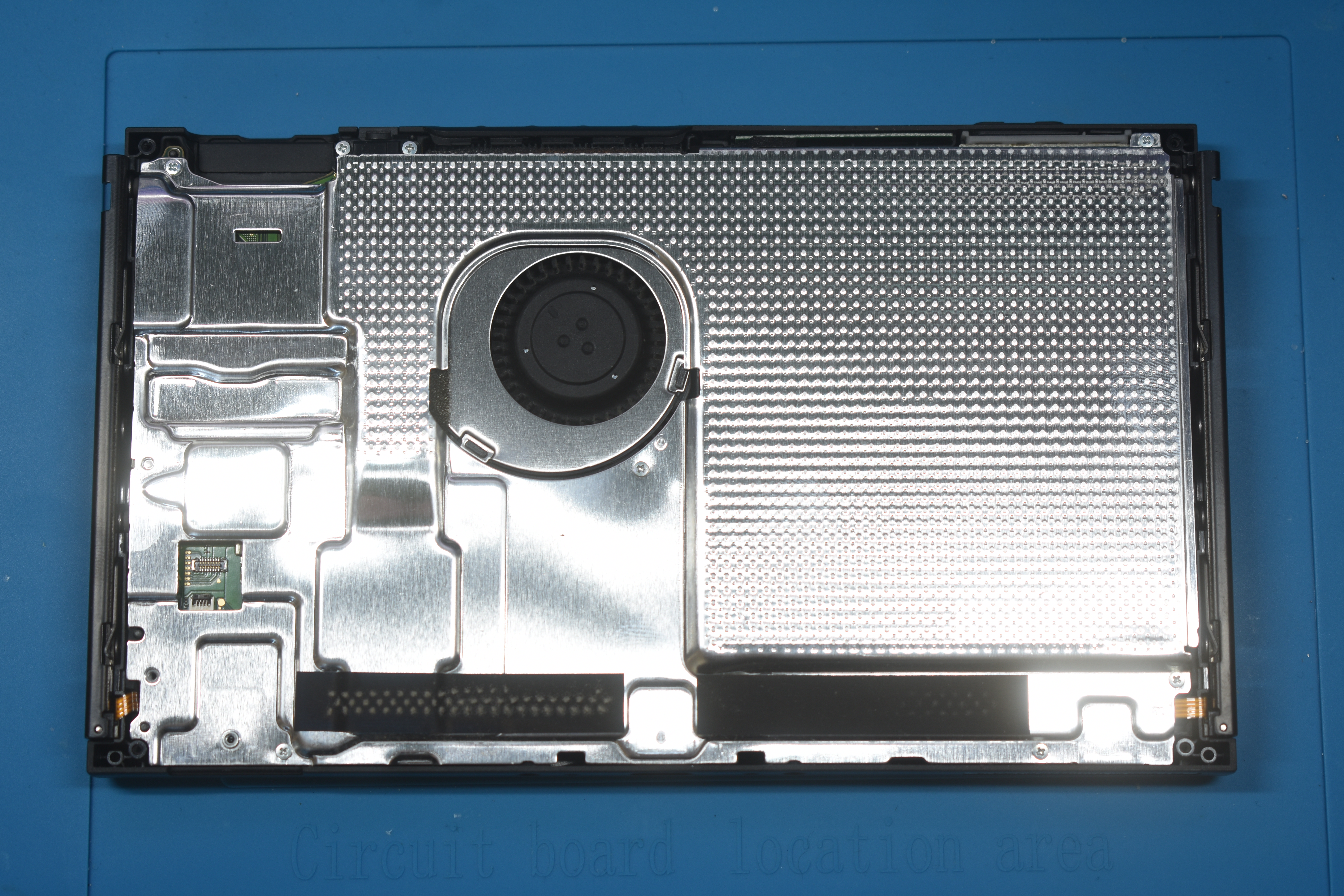

2. Remove the SD card reader.

3. Remove the metal shield/cover and disconnect the battery in the bottom right of the motherboard.

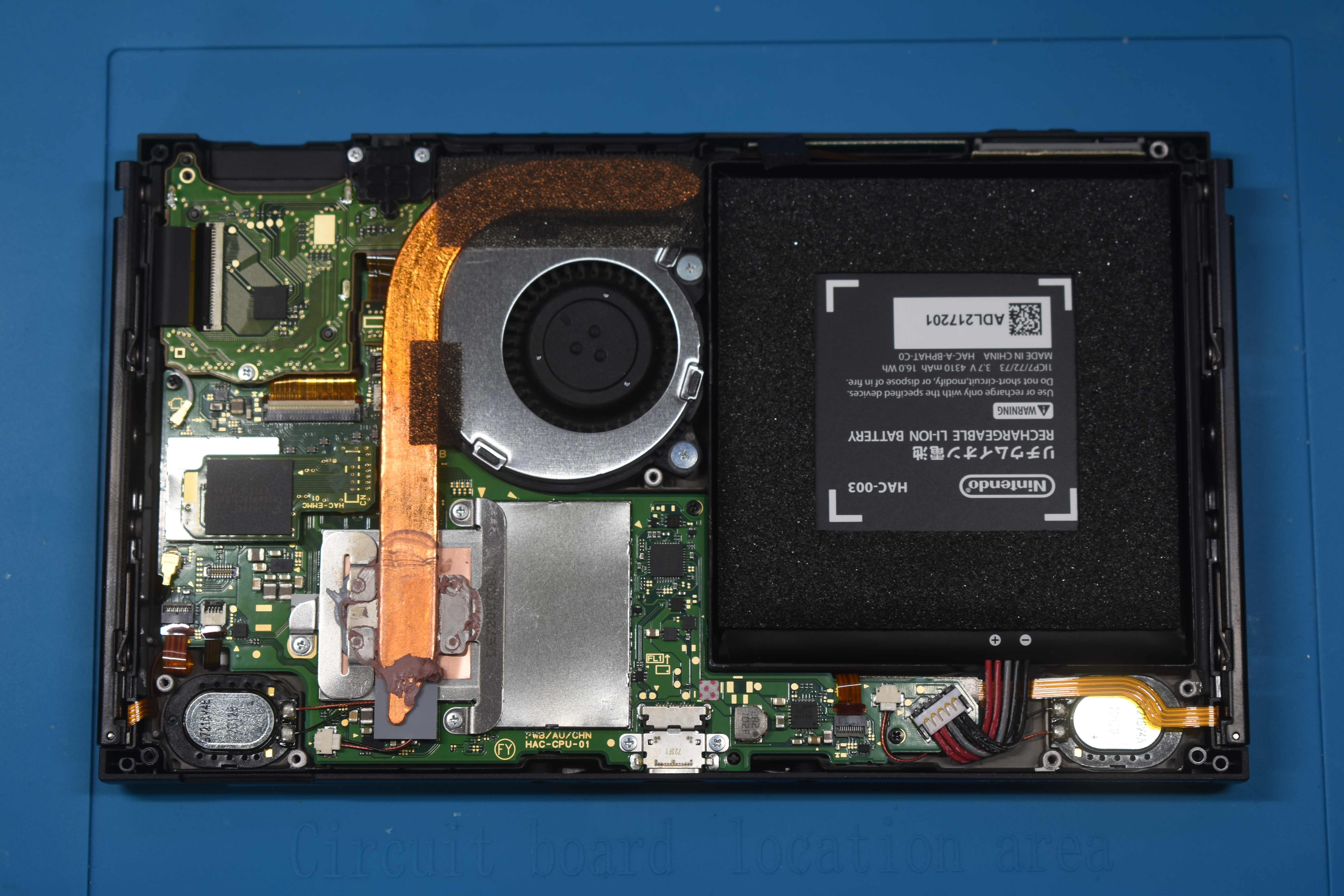

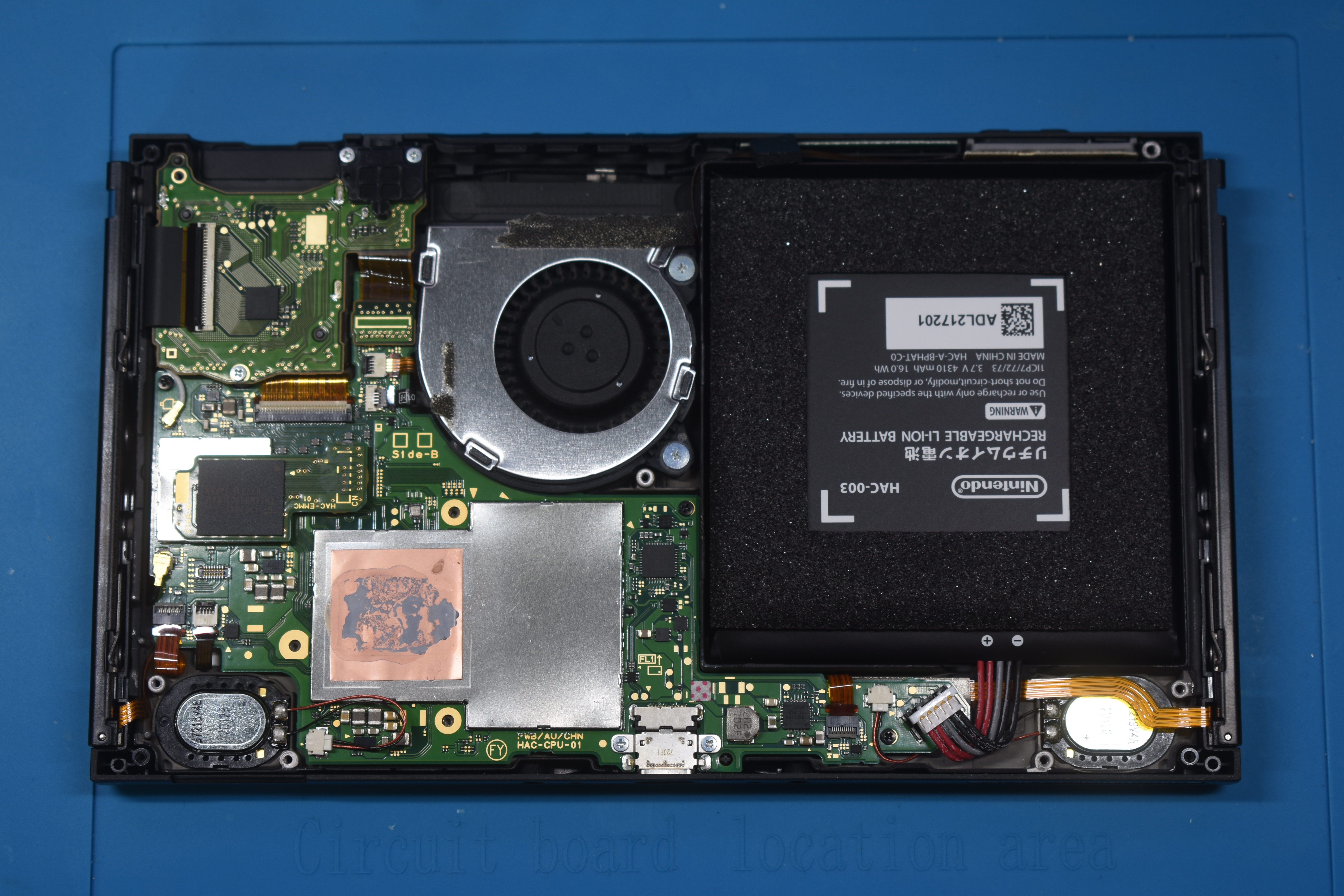

4. Remove the heatpipe/heatsink.

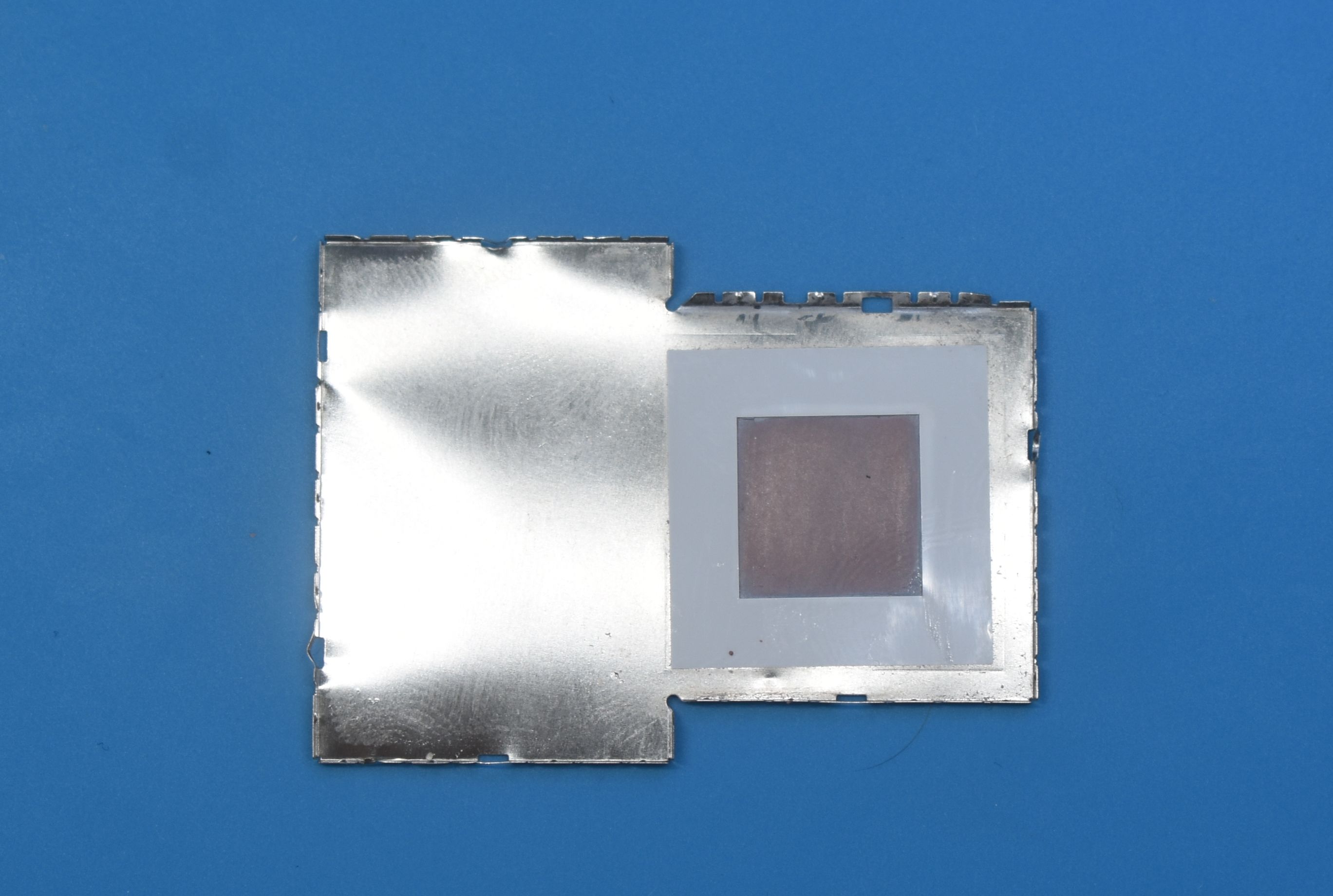

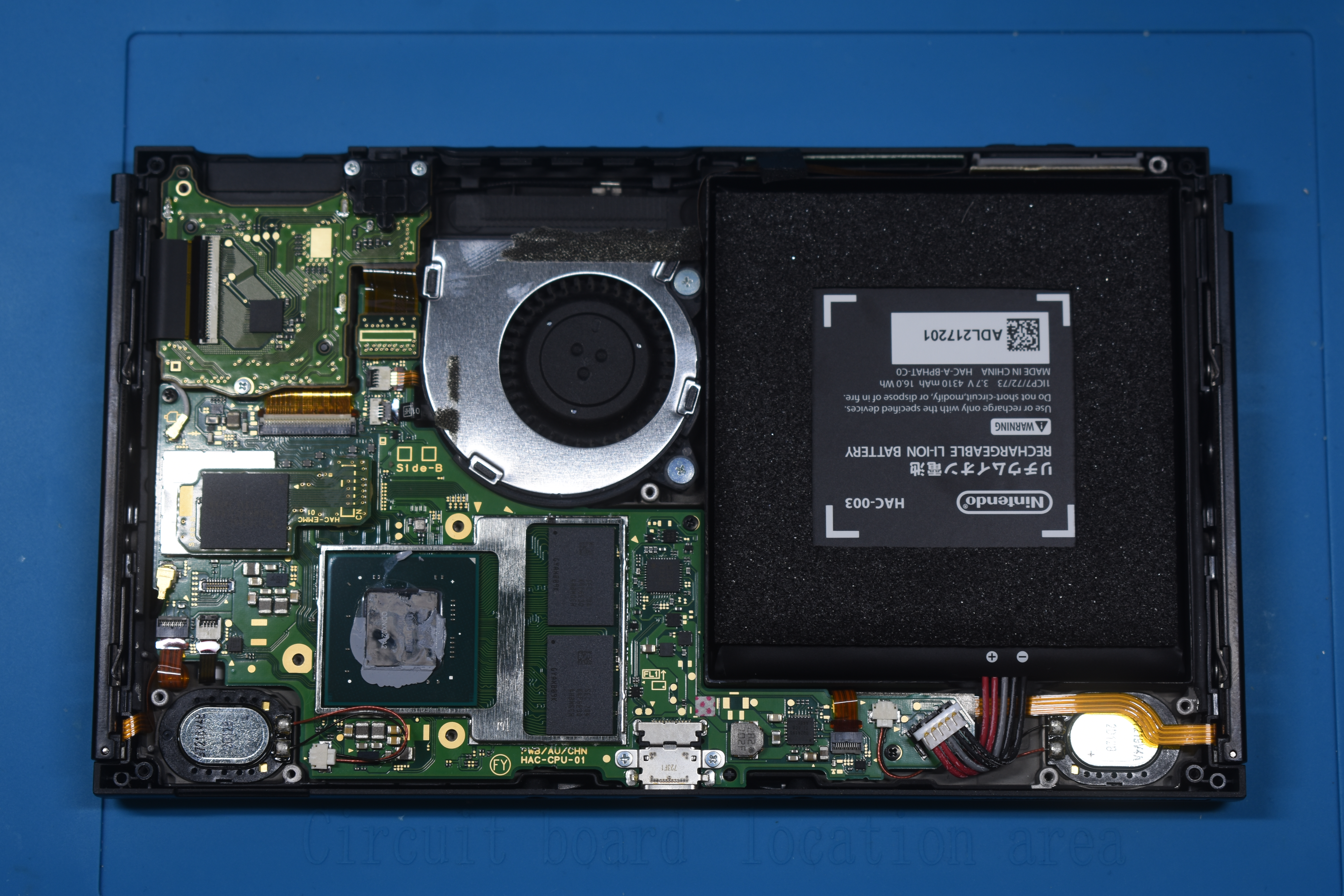

5. Remove the IHS (Internal Heat Spreader) to expose the bare SoC die and RAM chips.

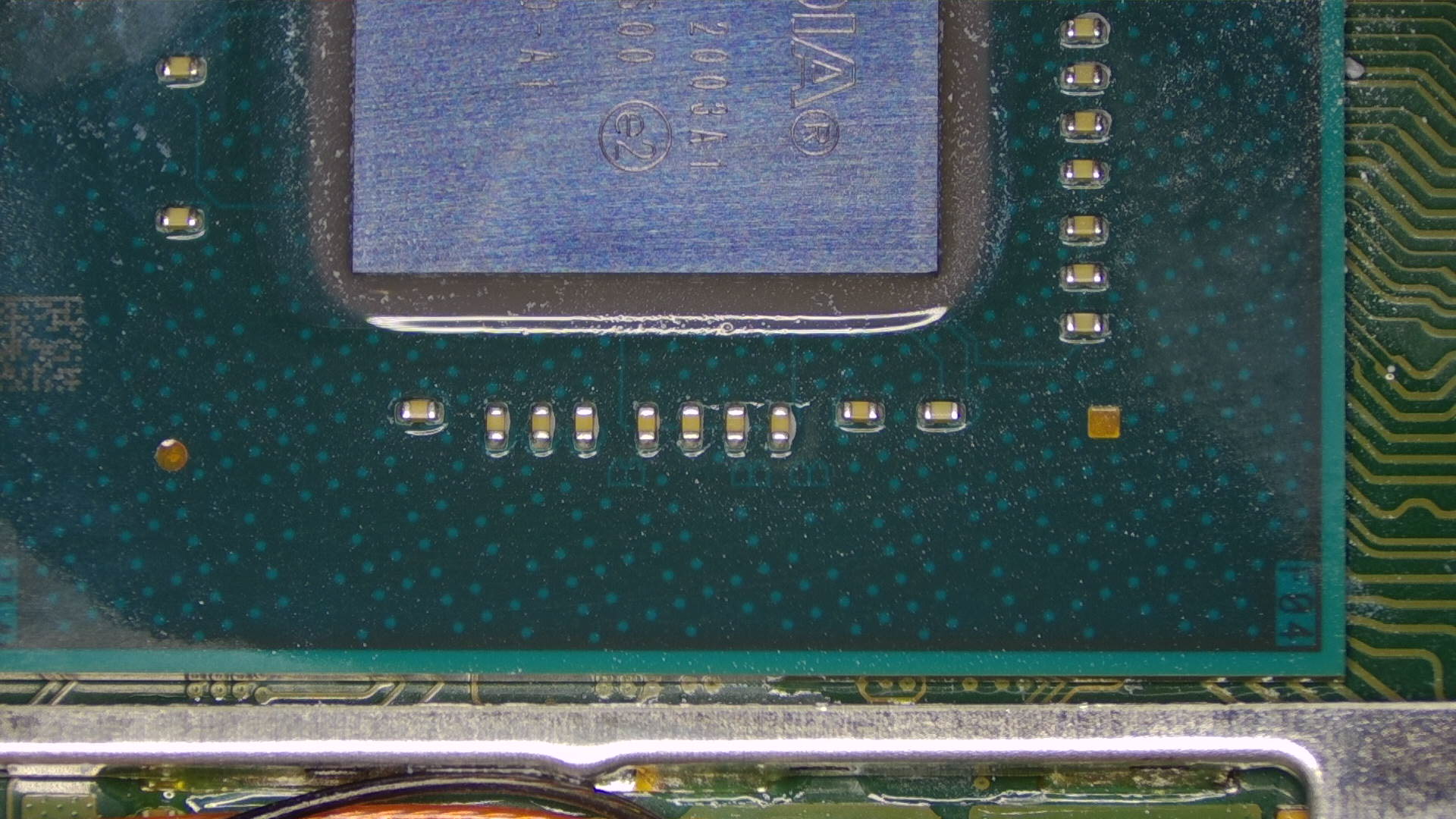

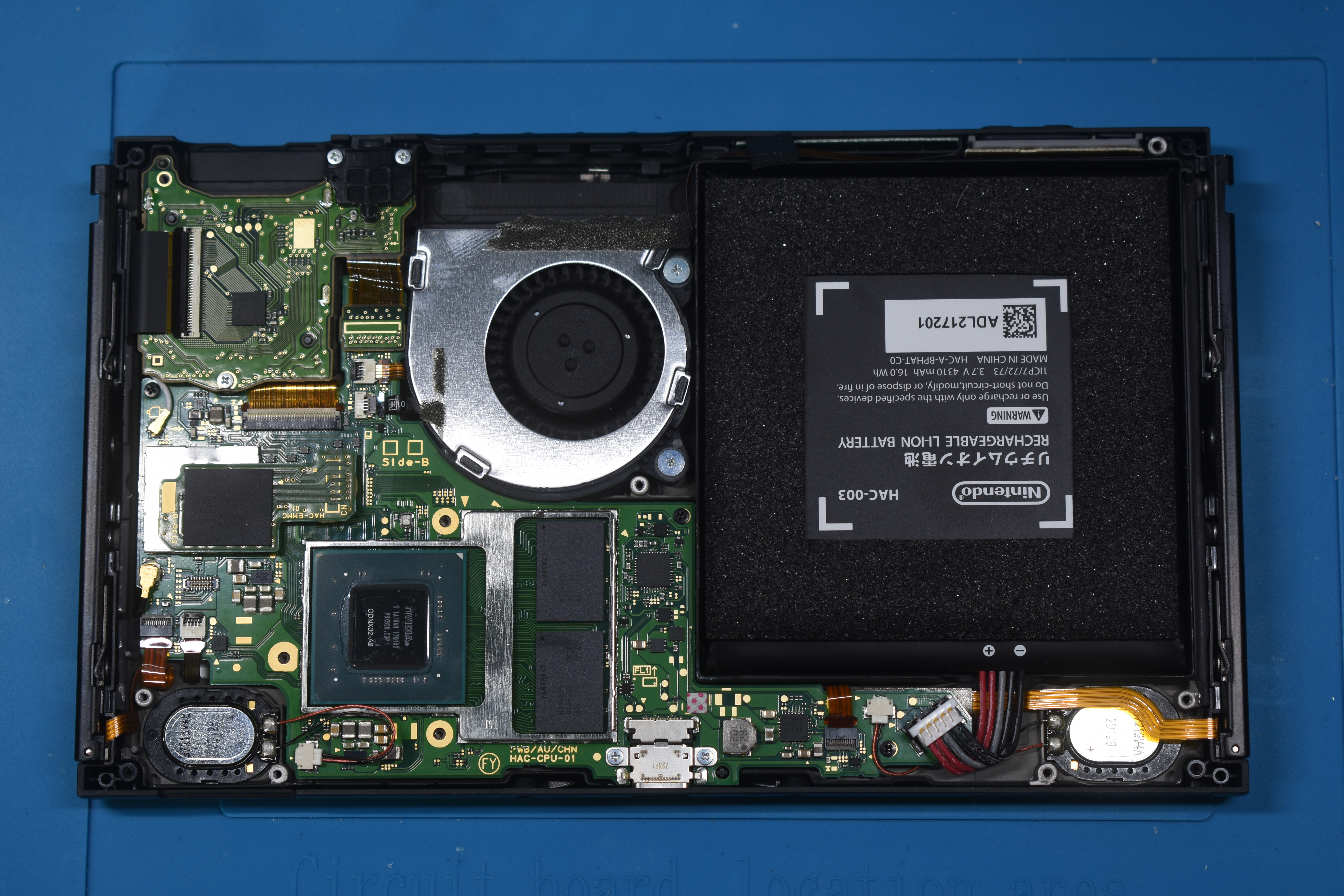

6. Remove and clean up the thermal paste on the SoC die and around/in-between the capacitors on the SoC using IPA.

   • You can also clean off the thermal paste between the IHS and heatpipe/heatsink in the meantime, the red-ish colored thermal goop between the heatpipe/heatsink and metal shield/cover can be left alone.

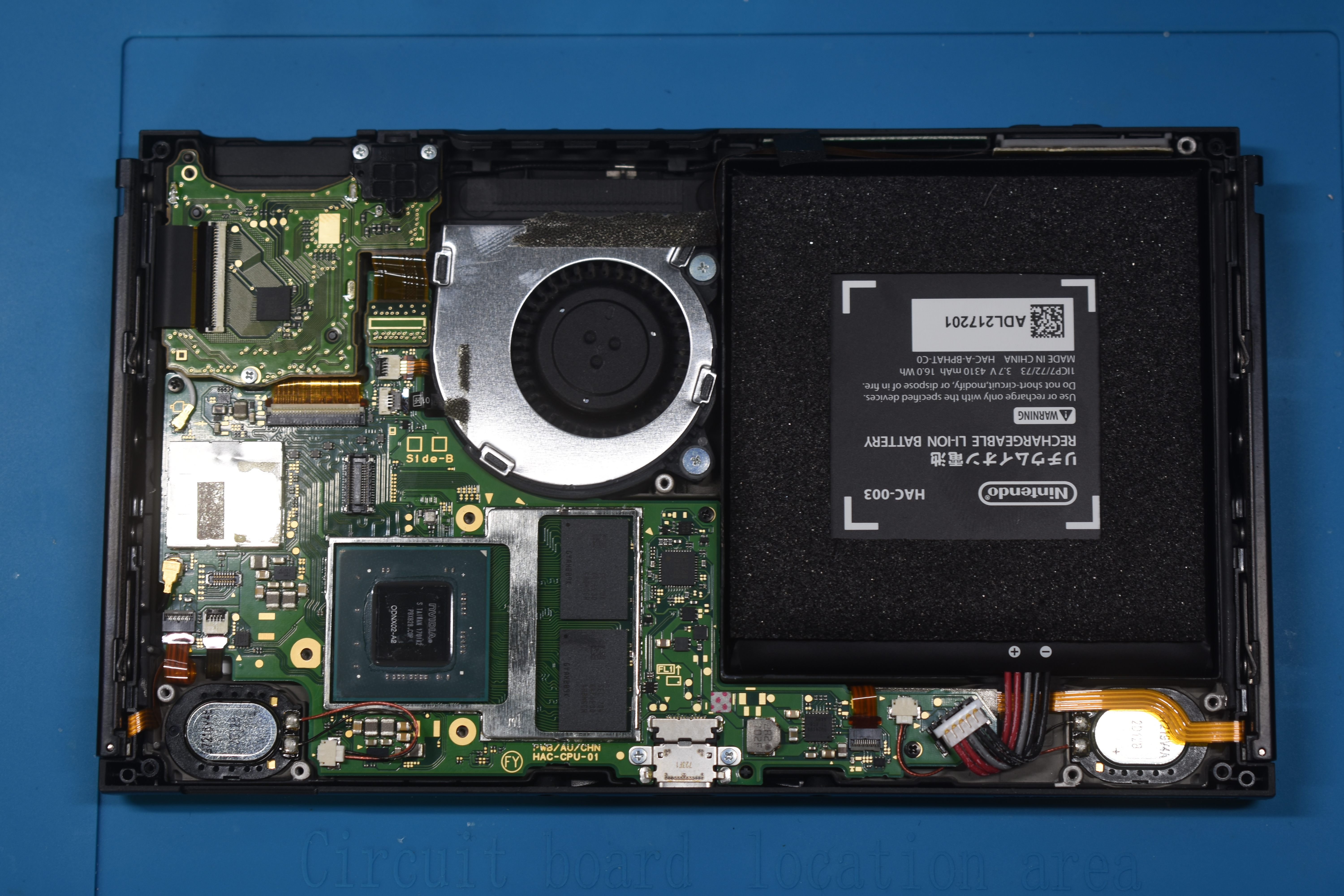

7. Remove (unplug) the eMMC module from the motherboard.

8. Locate the SoC and ensure your working area is clean, you do not want to have thermal paste interfere with your soldering tin. This can also cause corrosion over time if you don't clean the area properly.

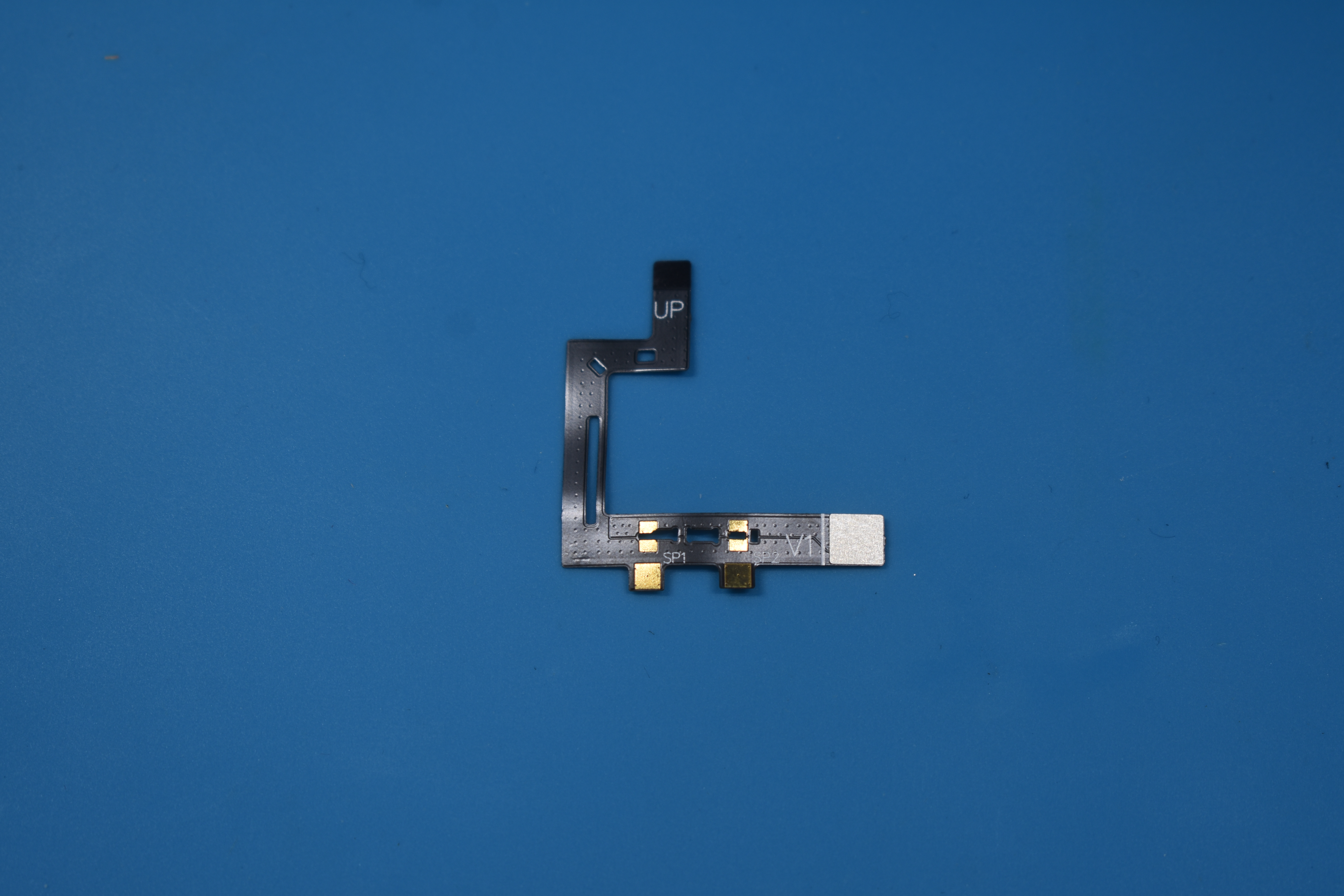

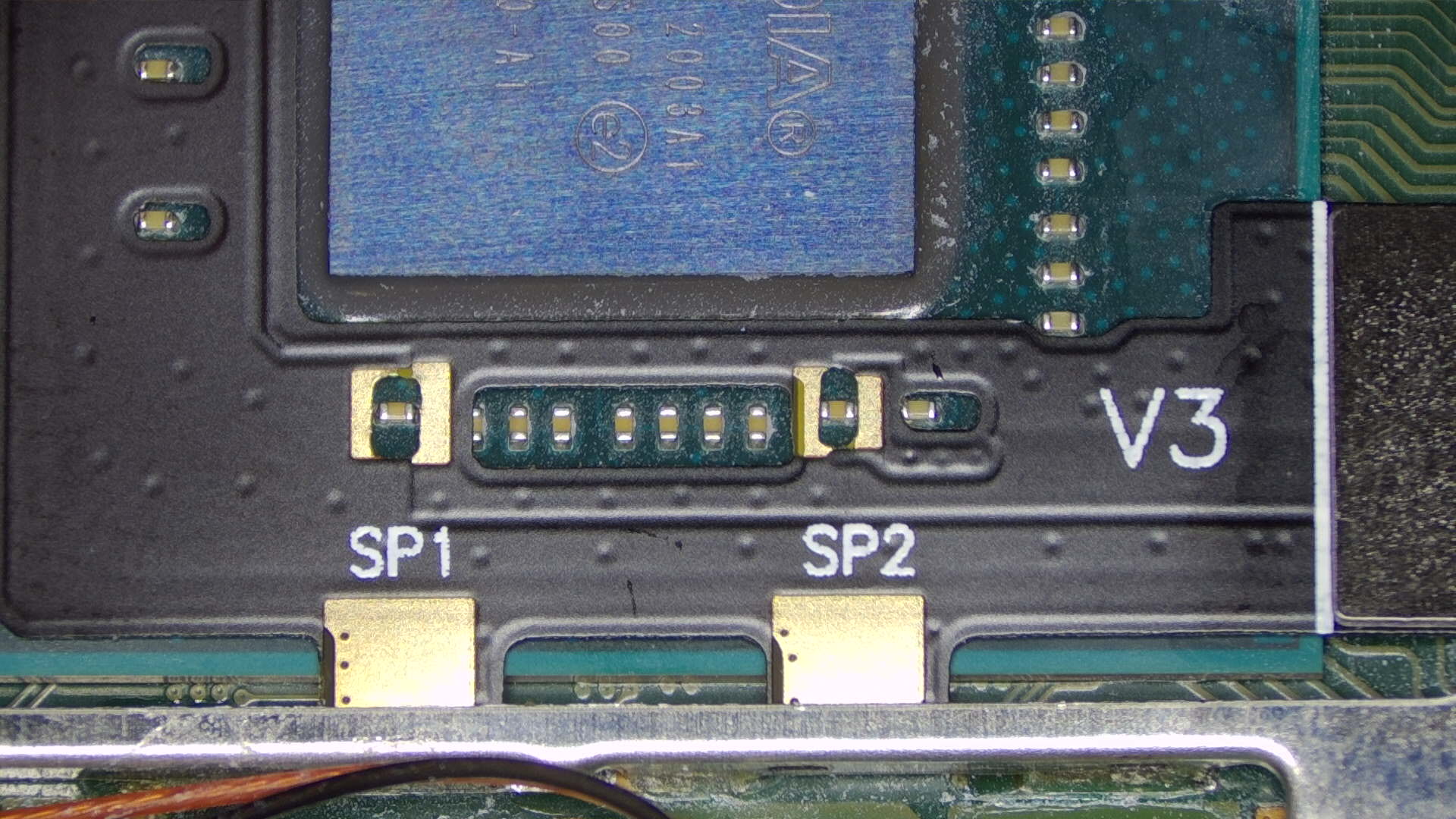

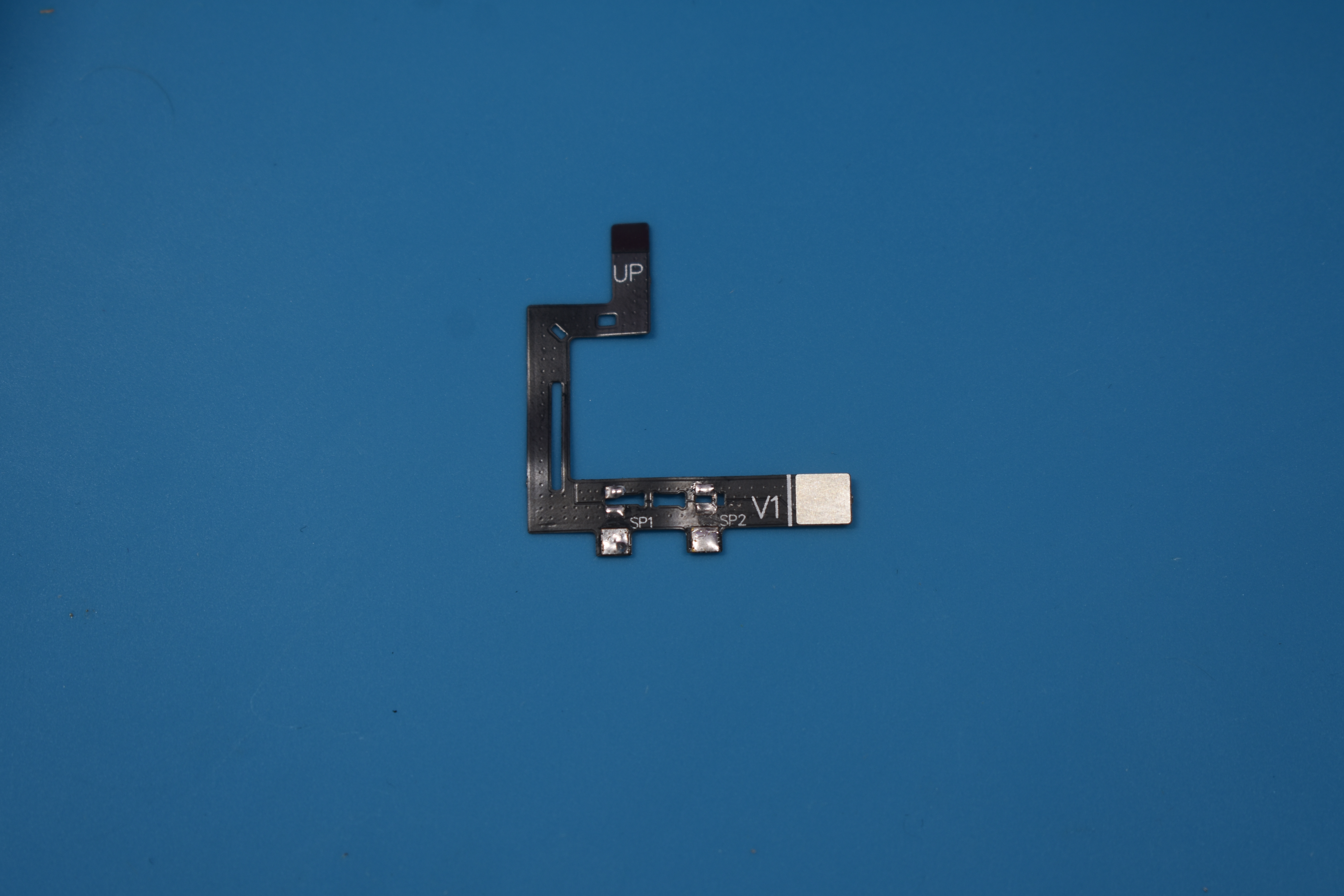

9. Place the SoC ribbon cable and align the ribbon cable with the capacitors on the SoC.

   Note regarding the SoC ribbon cable (Click to unfold)

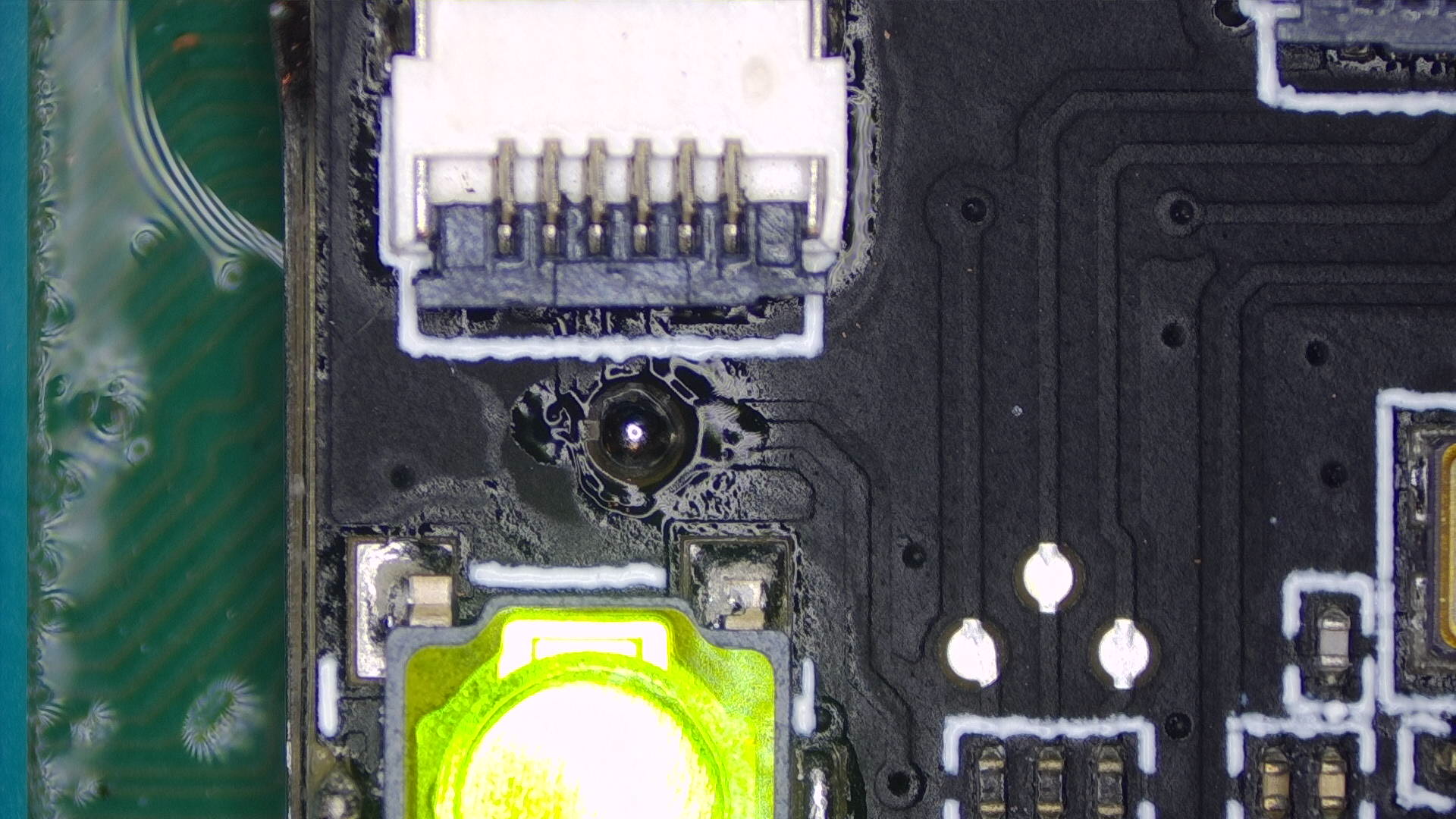

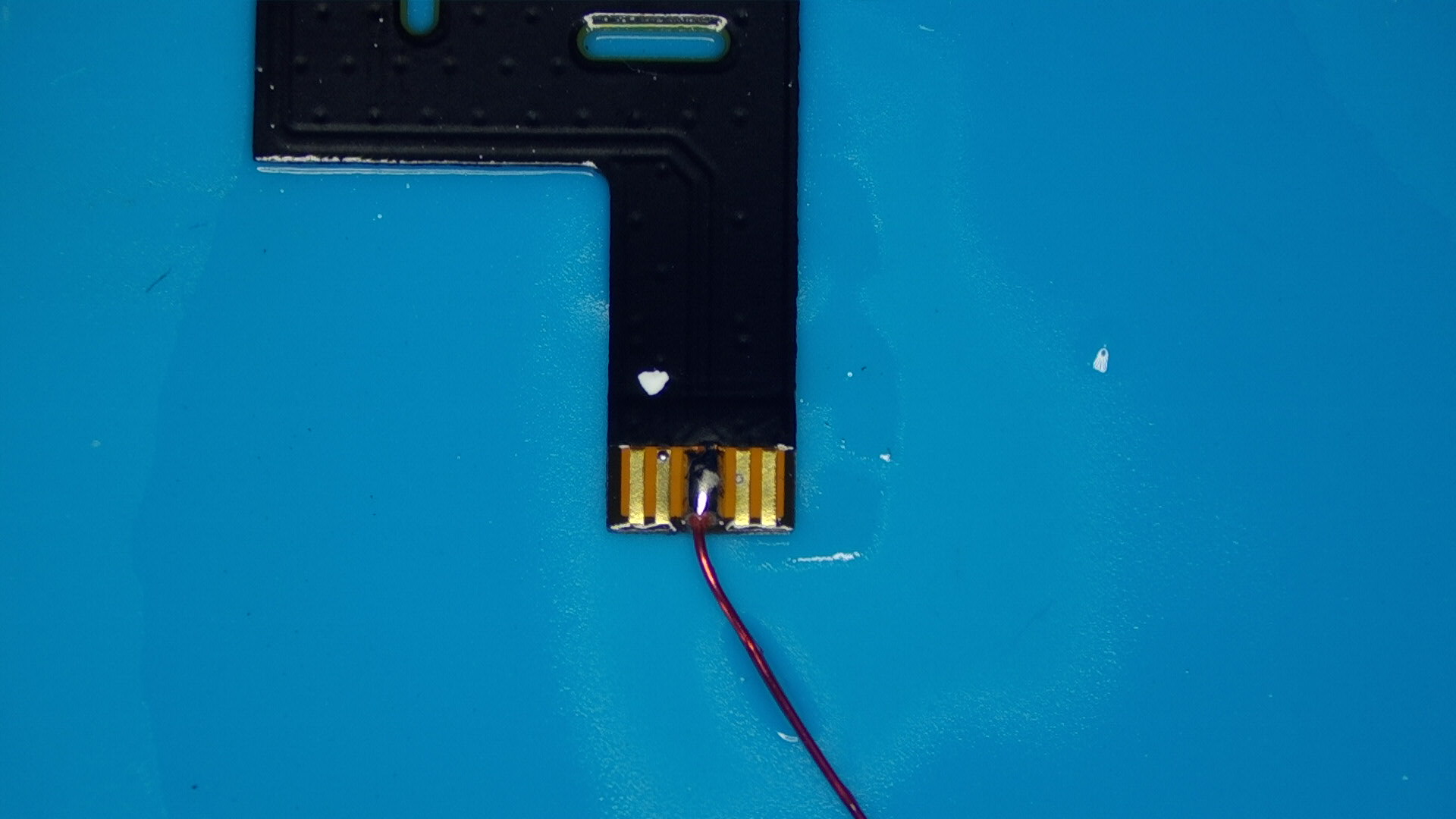

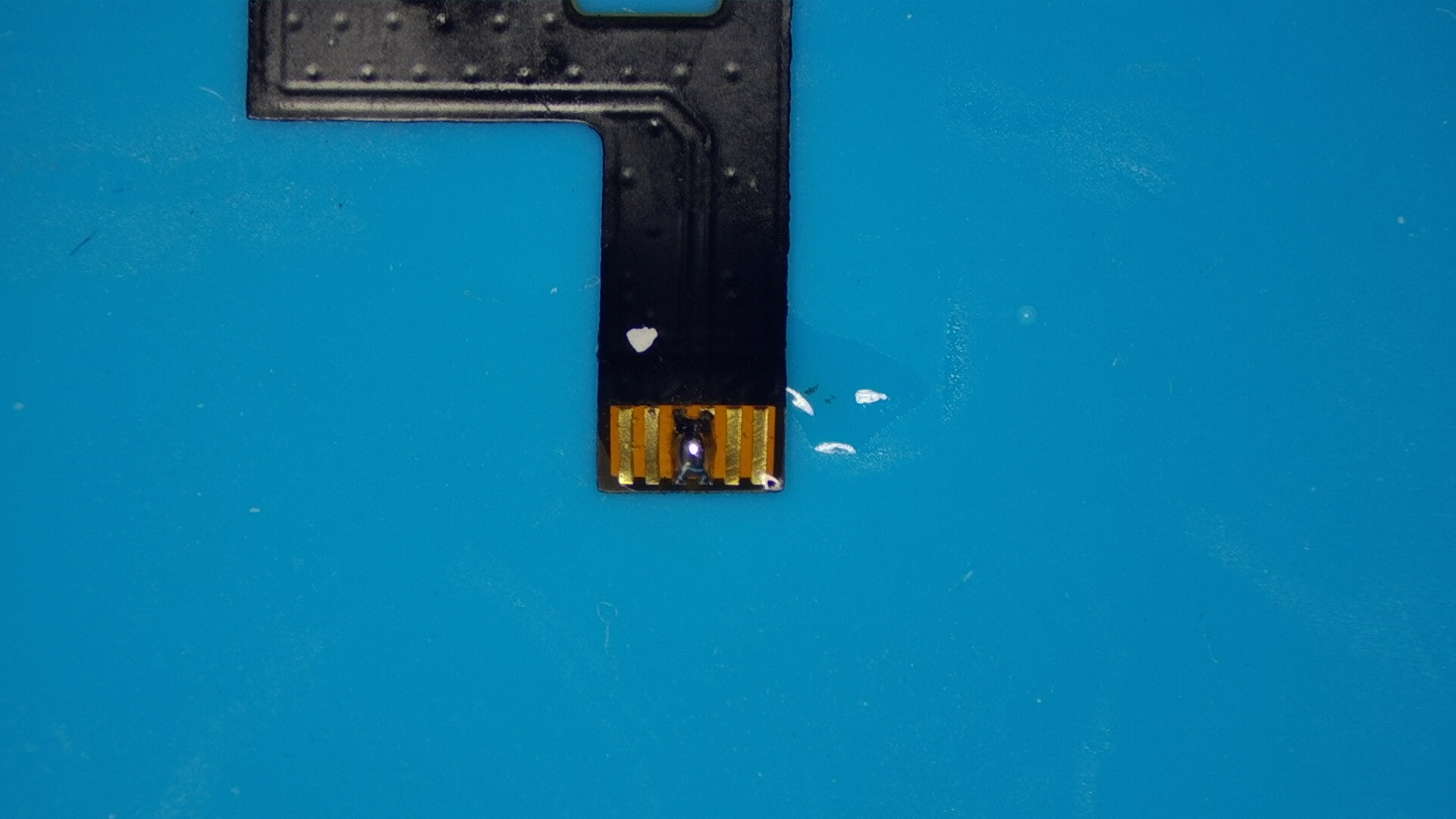

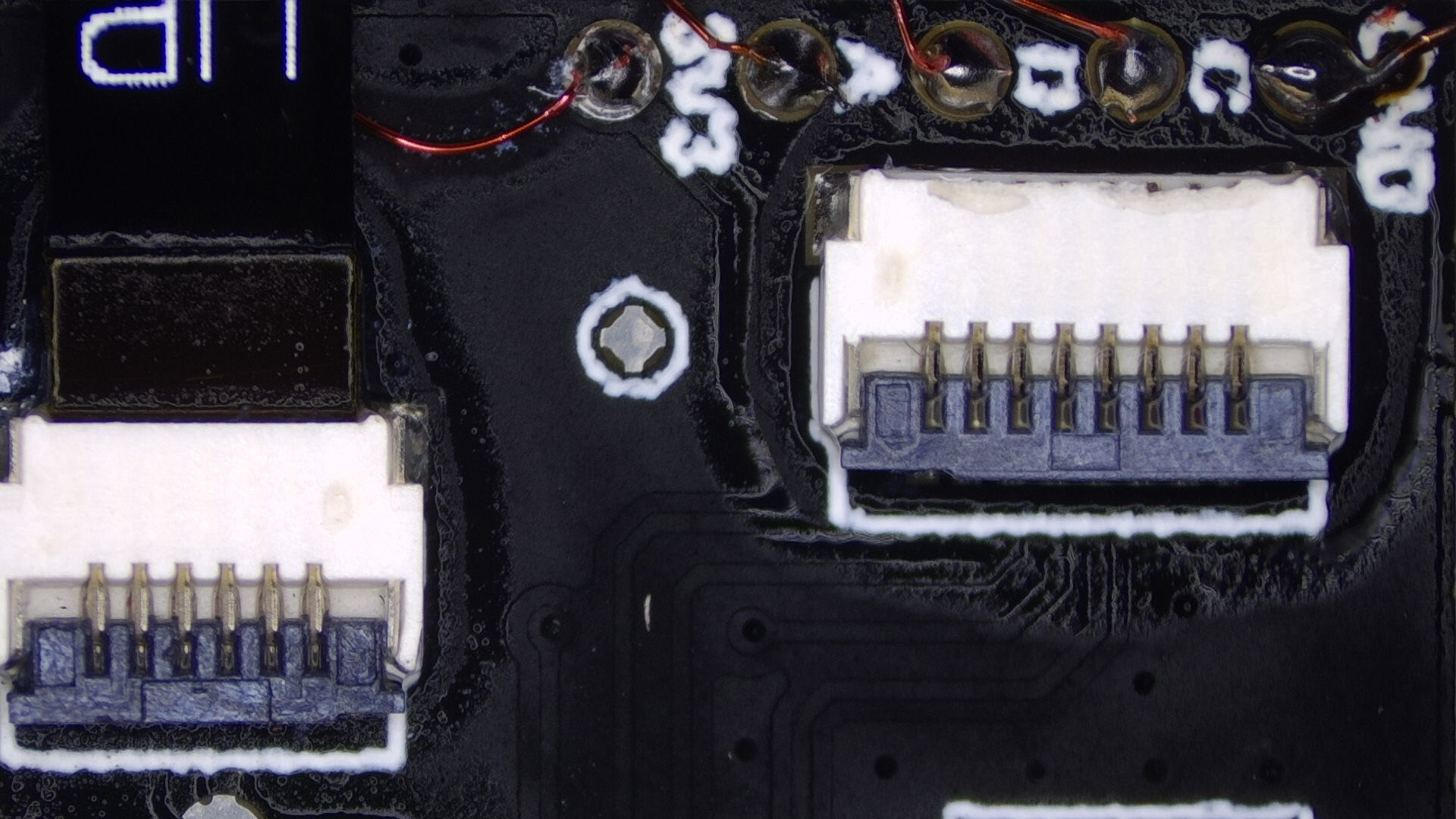

   1. If your SoC ribbon cable is too short or you use an RP2040-Tiny development board, you cannot plug into the modchip directly. To make it work regardless, you can just solder a wire to the two middle pins of the ribbon cable (as pictured below).¶



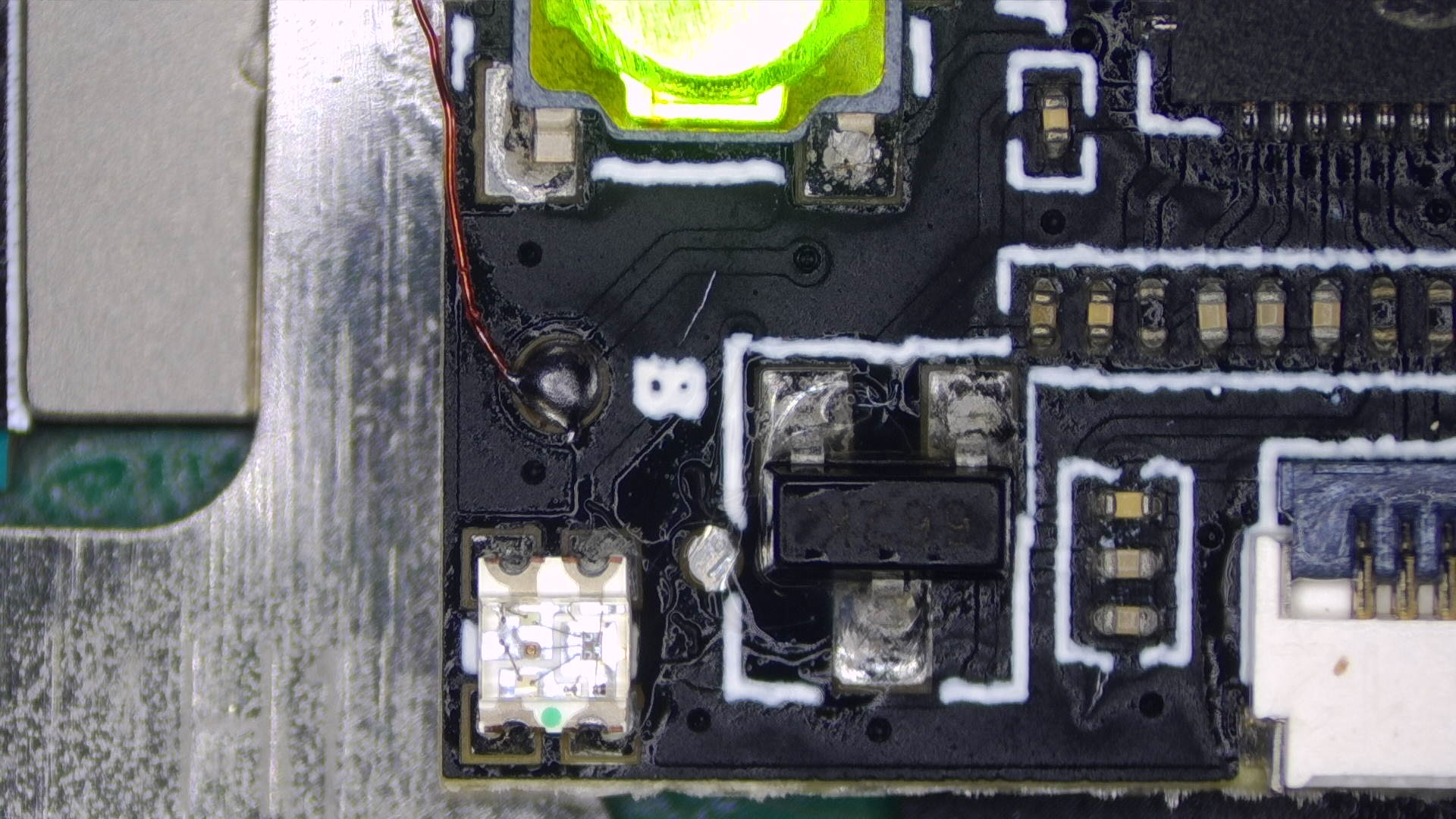

   2. The "premade" Picofly OLED modchips will usually have a dedicated exposed pad on it that you can solder a wire to. You can view this pad below as well.¶

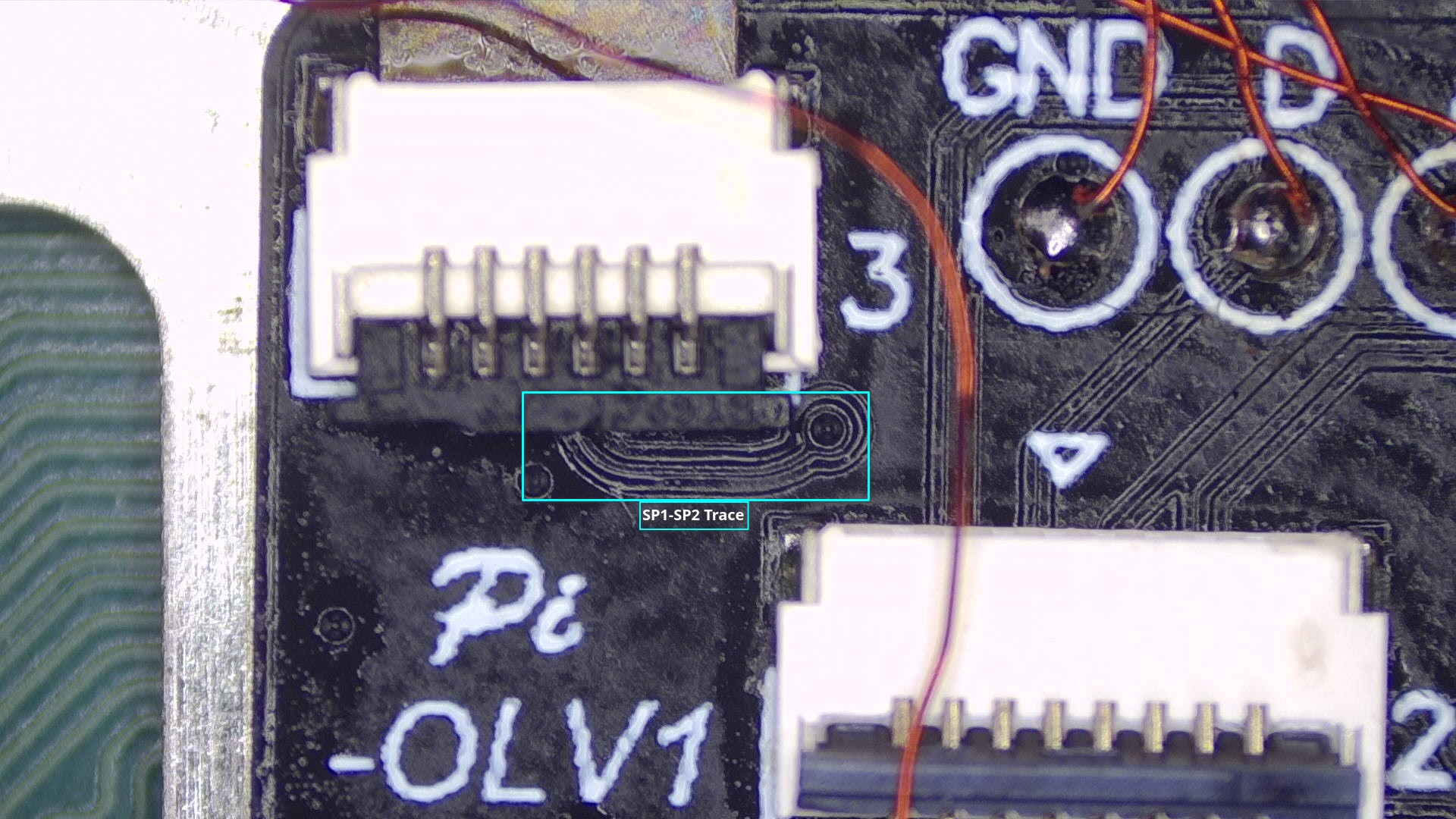

      • Note: If your modchip model does not have this dedicated pad, you can simply scrape off some solder mask off of the SP1/SP2 trace on the modchip and solder directly to said trace.

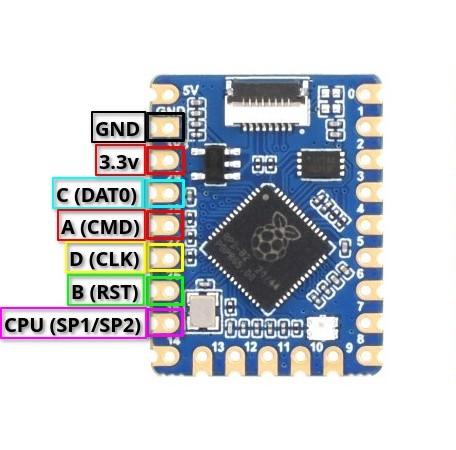

      • If you use the RP2040-Tiny, it has a dedicated GPIO pin (pin 15). You can refer to the pinout at the very top of this page

10. Tuck the anker points underneath the metal frame below the SoC and the MOSFET section of the ribbon cable underneath the frame between the SoC and RAM.

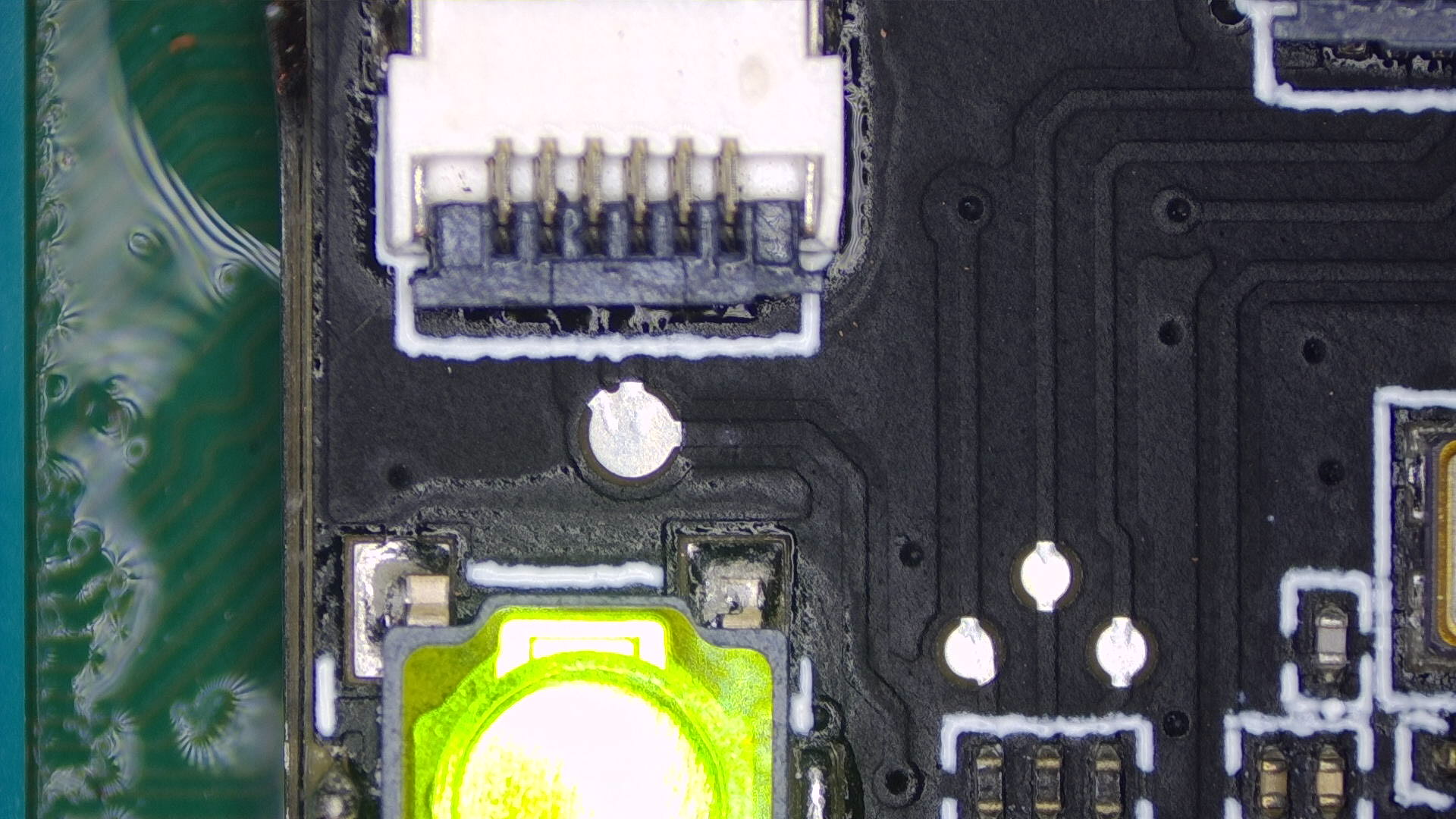

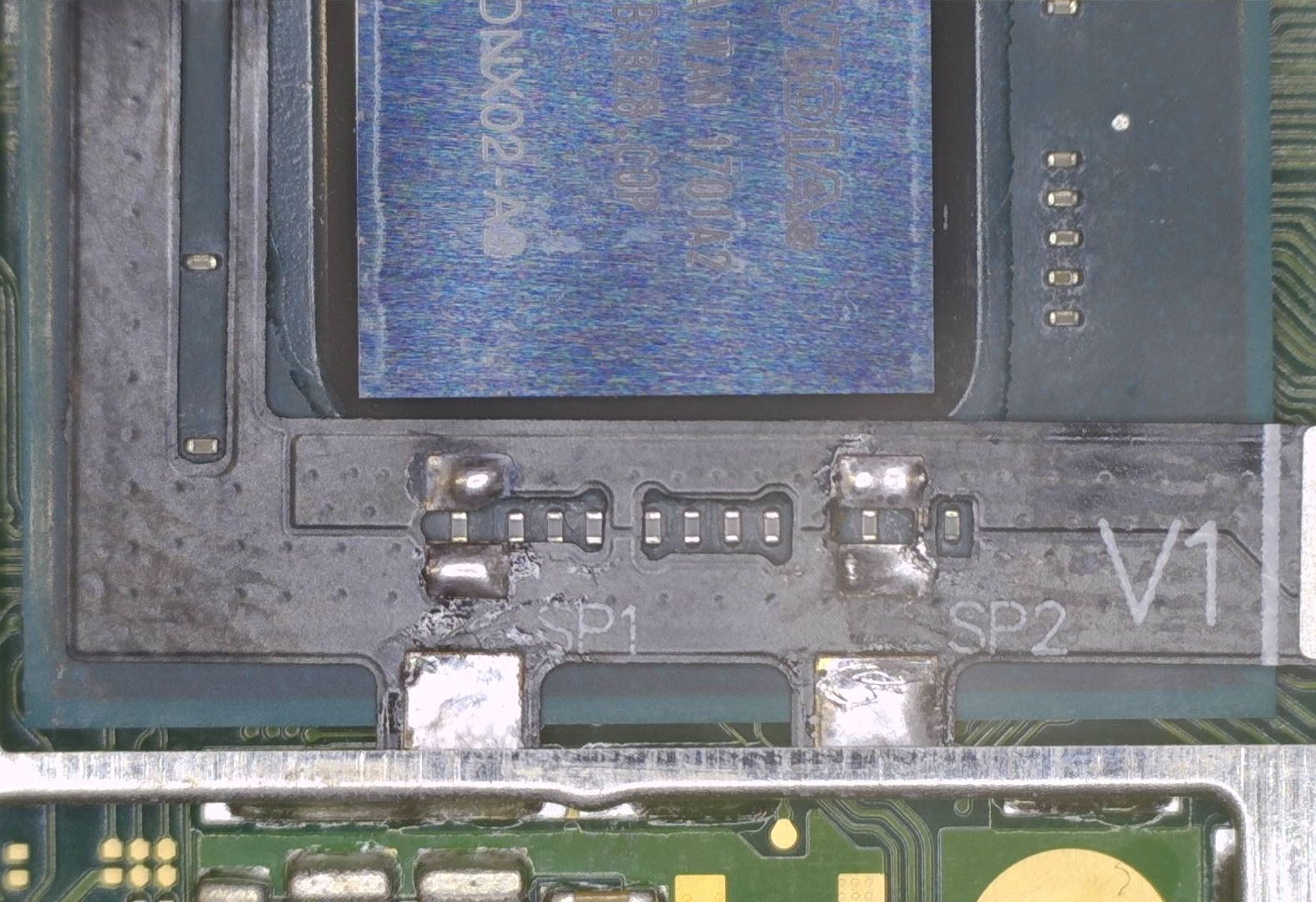

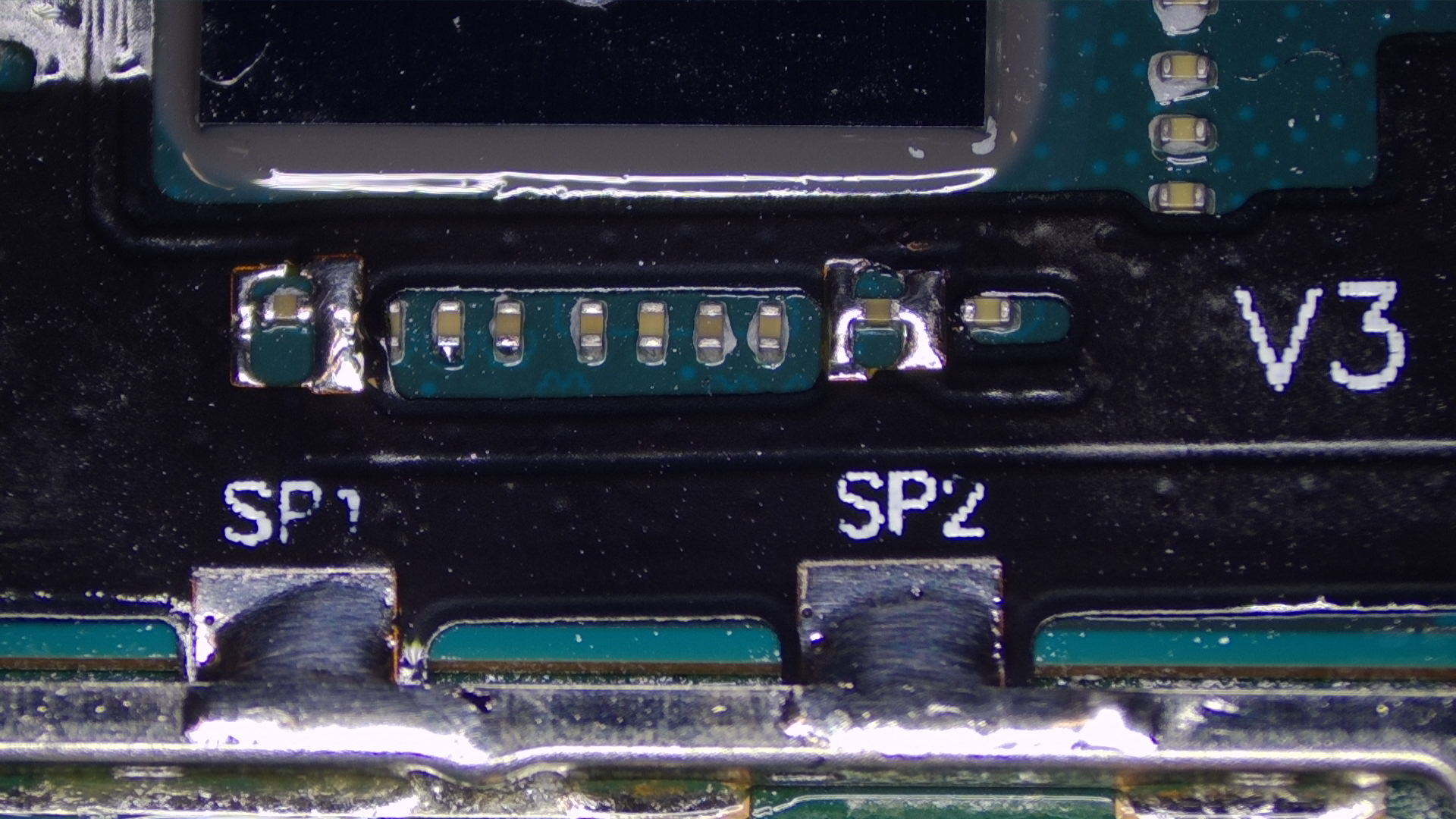

11. Apply flux and use your soldering iron to heat up the end of each capacitor together with the respective pad next to both ends of each capacitor of the SP1 and SP2 points, ensure the solder flows between the pad on the ribbon cable and each end of the capacitors.

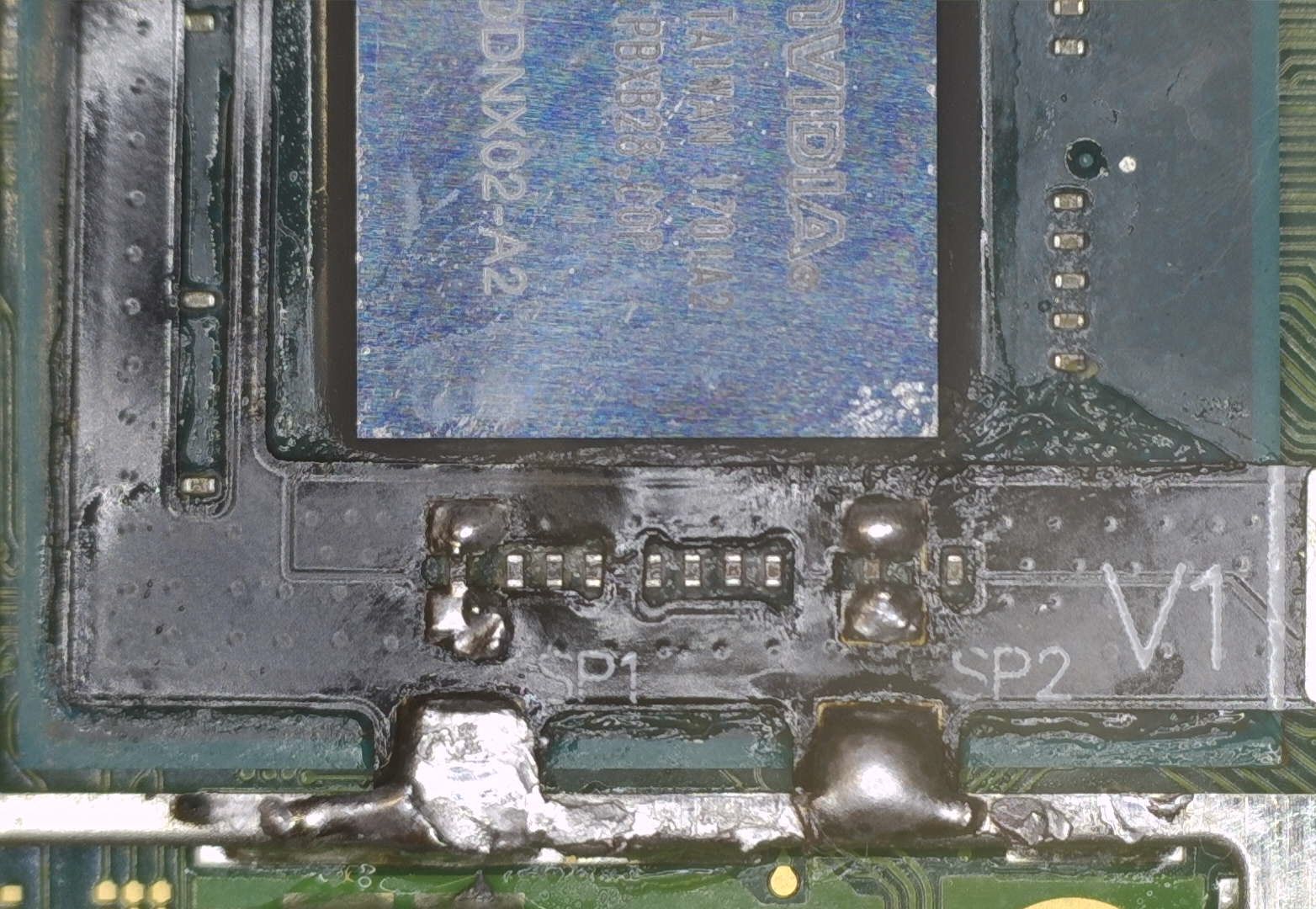

12. Your ribbon cable should now be secured in place with both ends of each capacitor soldered to the pads on the ribbon cable.

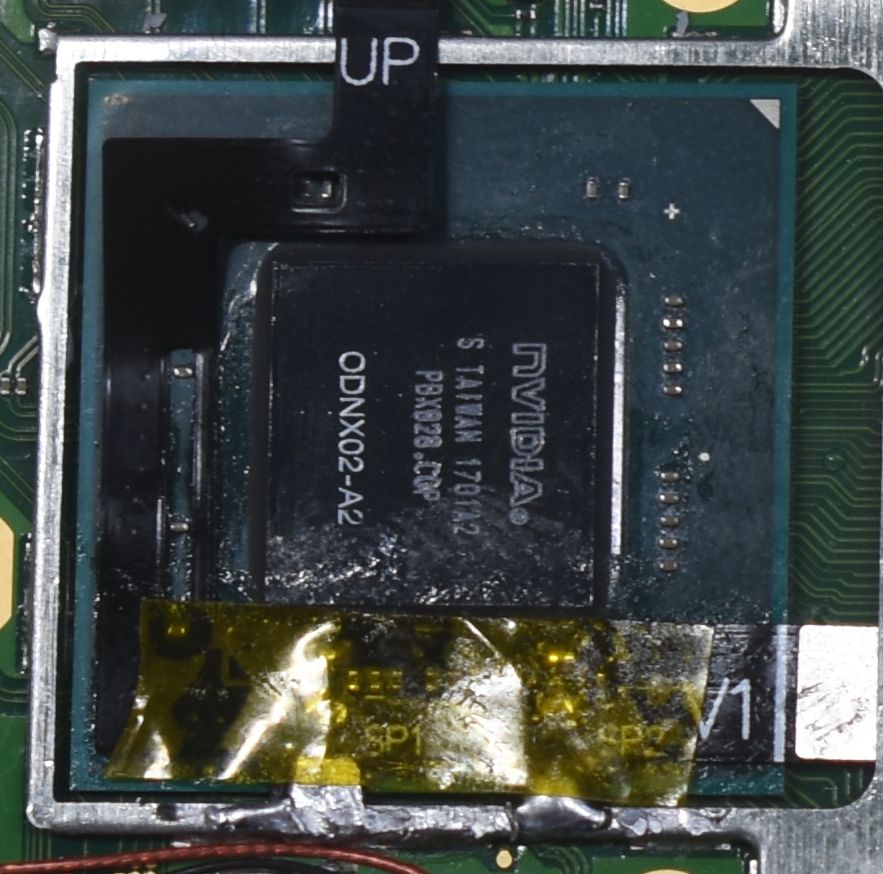

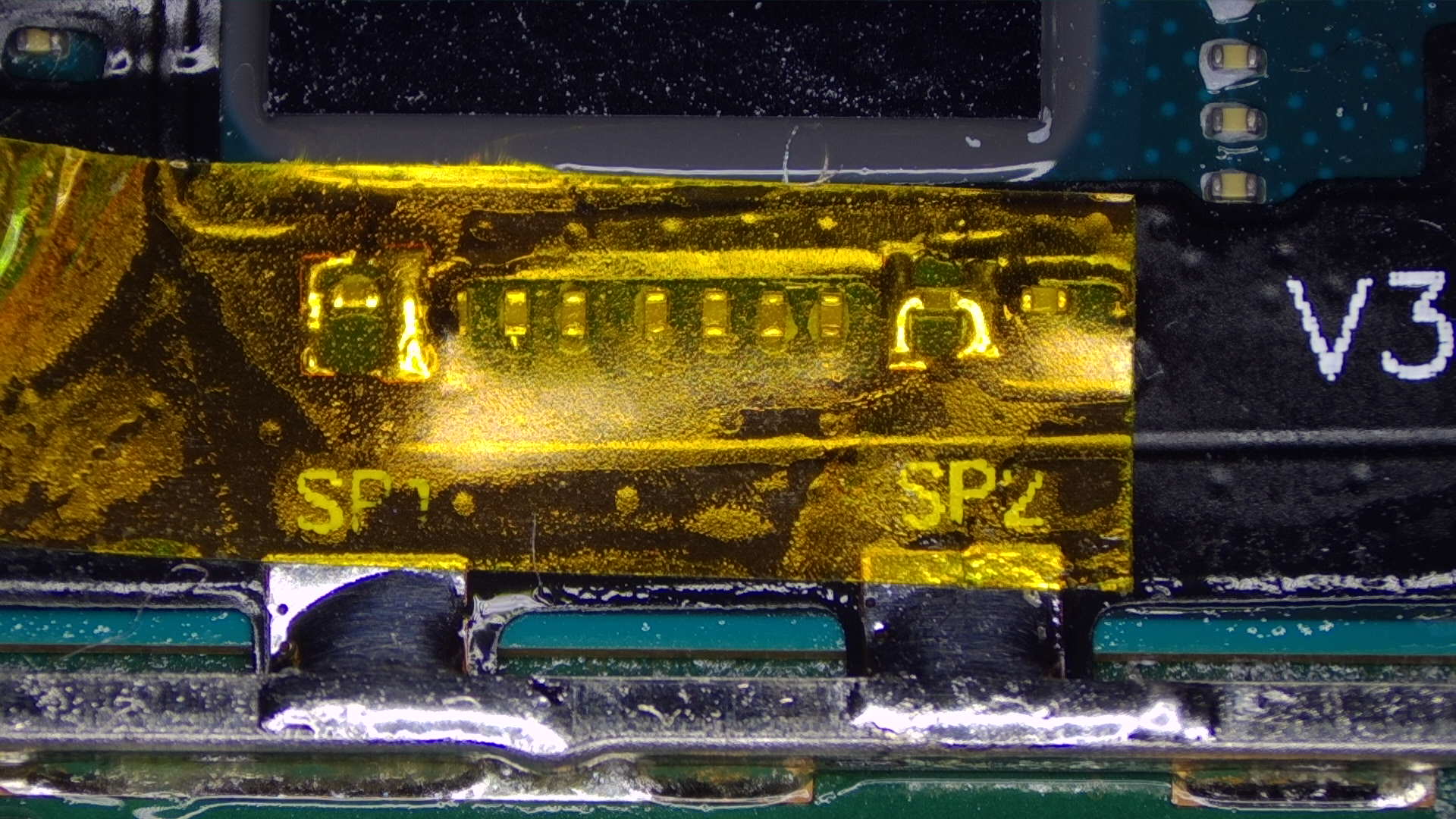

    • Optional: Place Kapton tape across your solder joints to prevent thermal paste from potentially corroding your solder joints in the future. It also helps in cases where you might have to rework your solder joints.

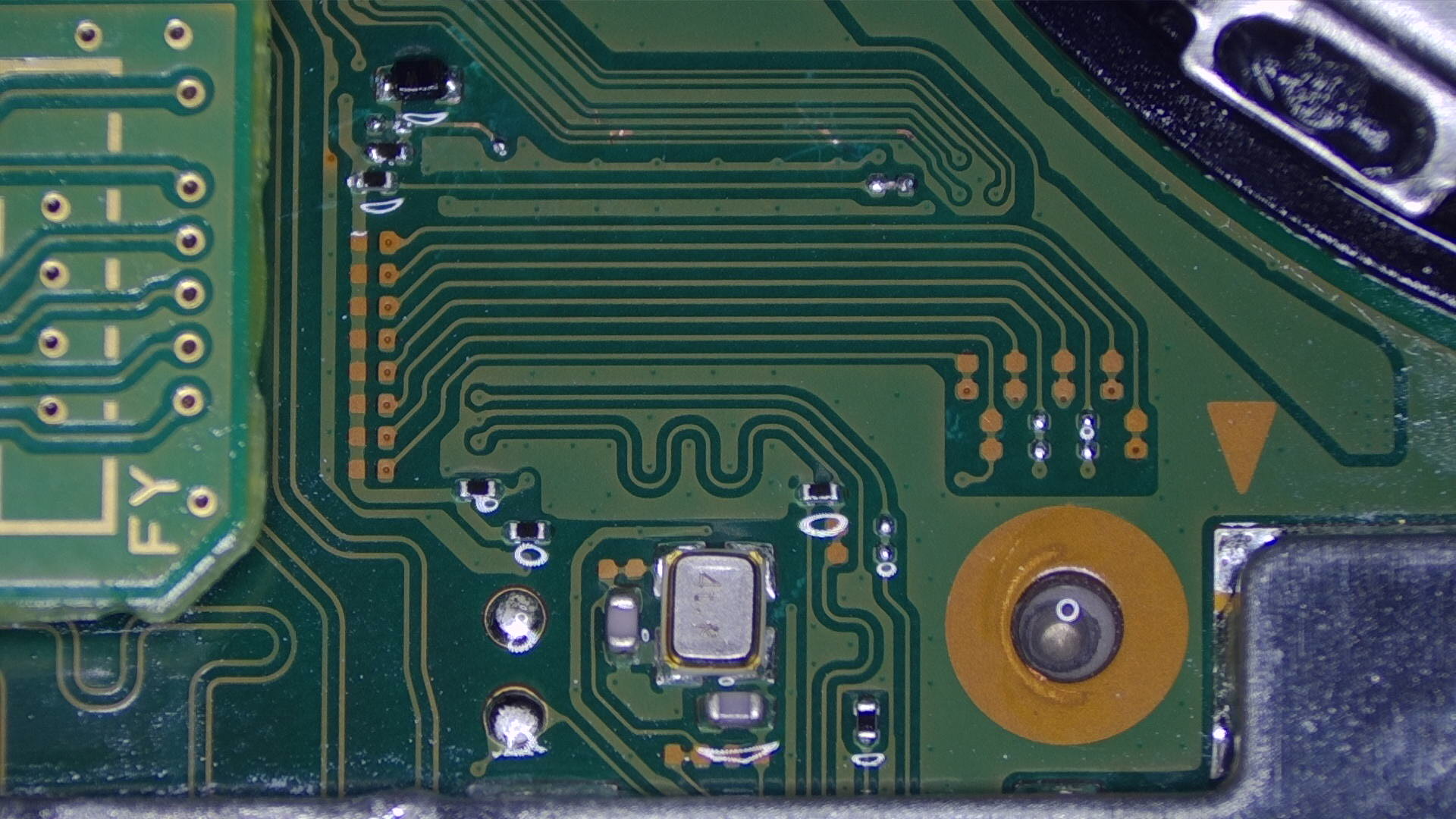

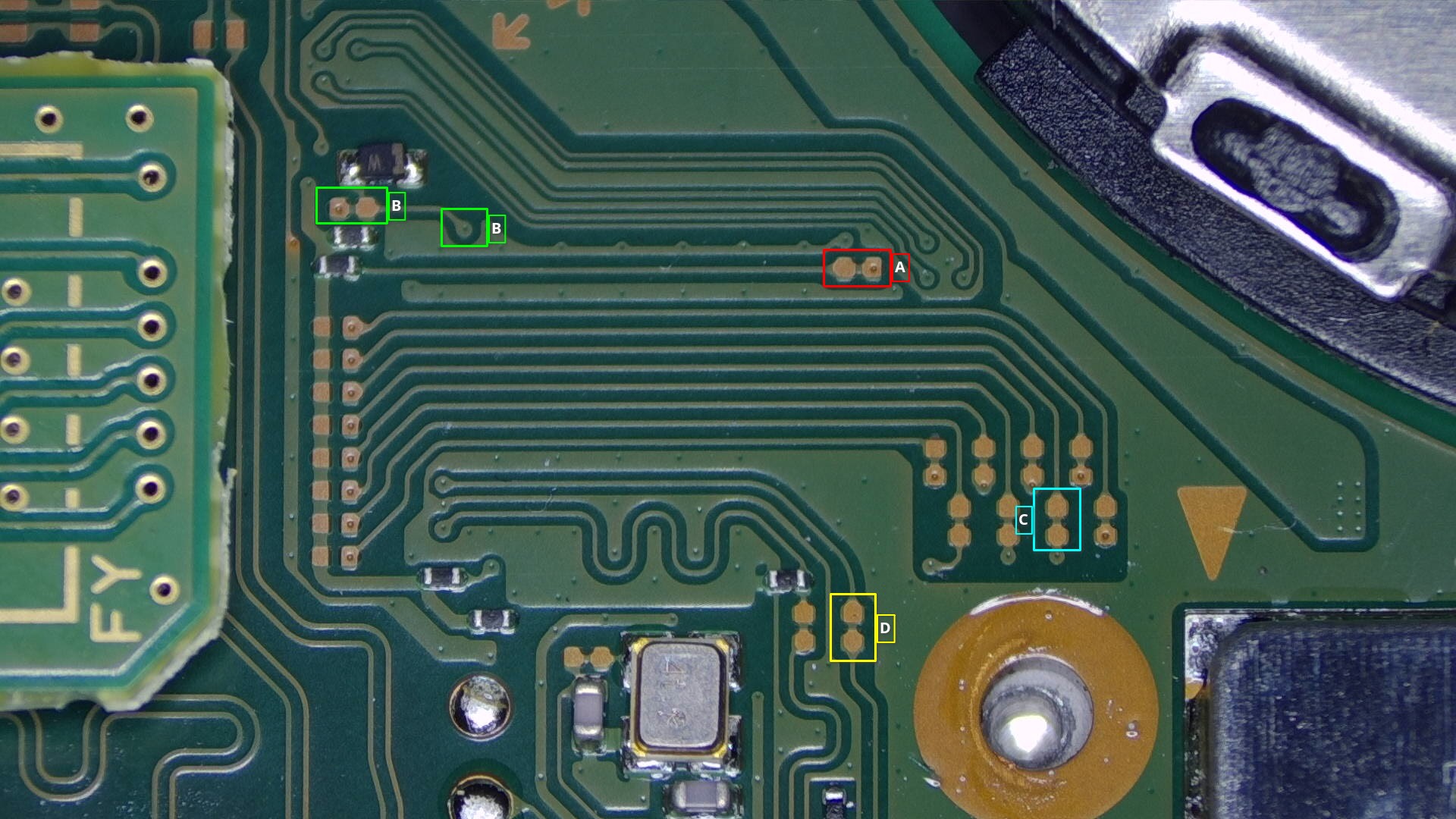

13. Move on to the area above the SoC. In the image below, the required pads are outlined and named.

    The names for each point are the following:

    • A: CMD
    • B: RST
    • C: DAT0
    • D: CLK

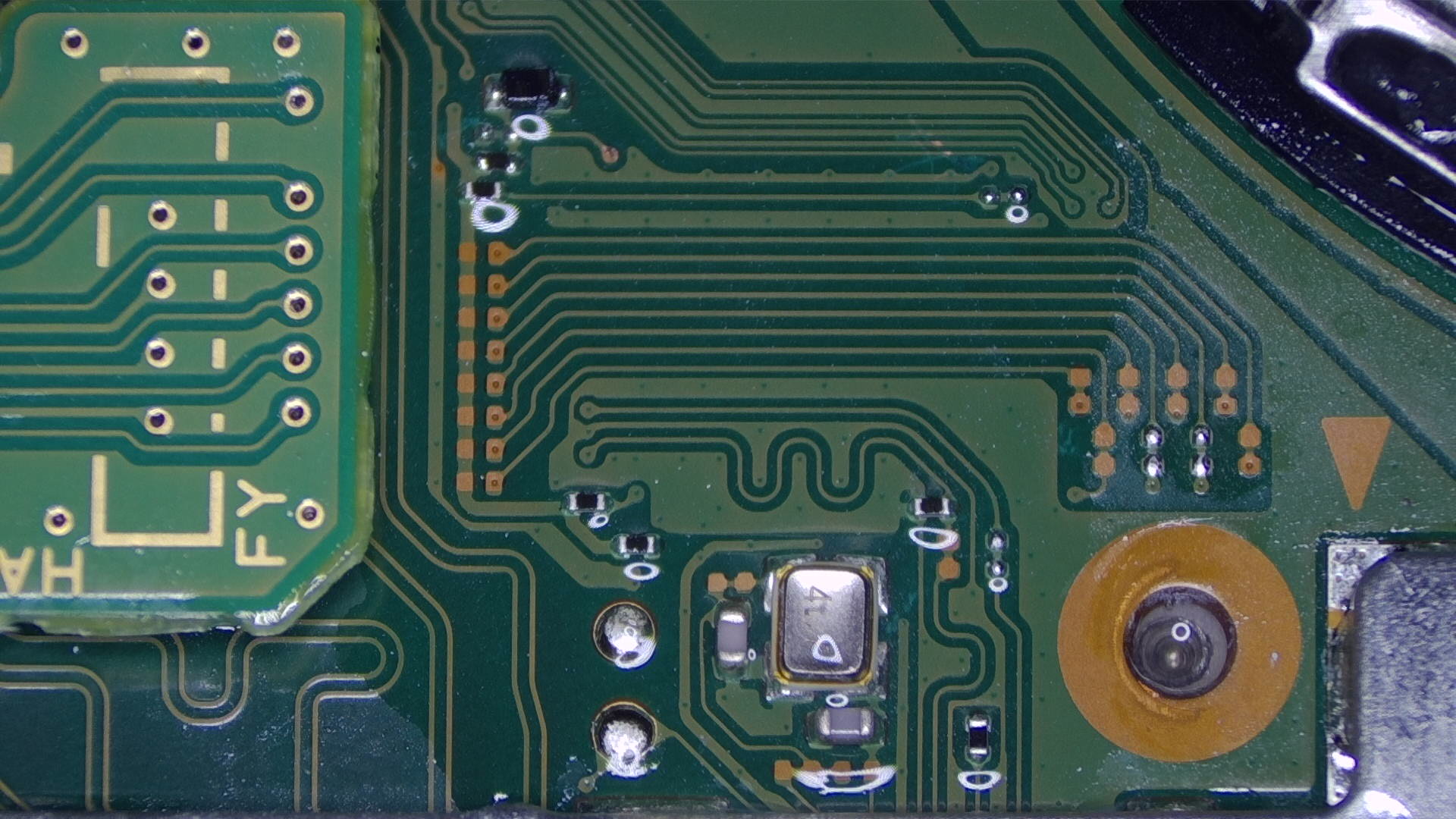

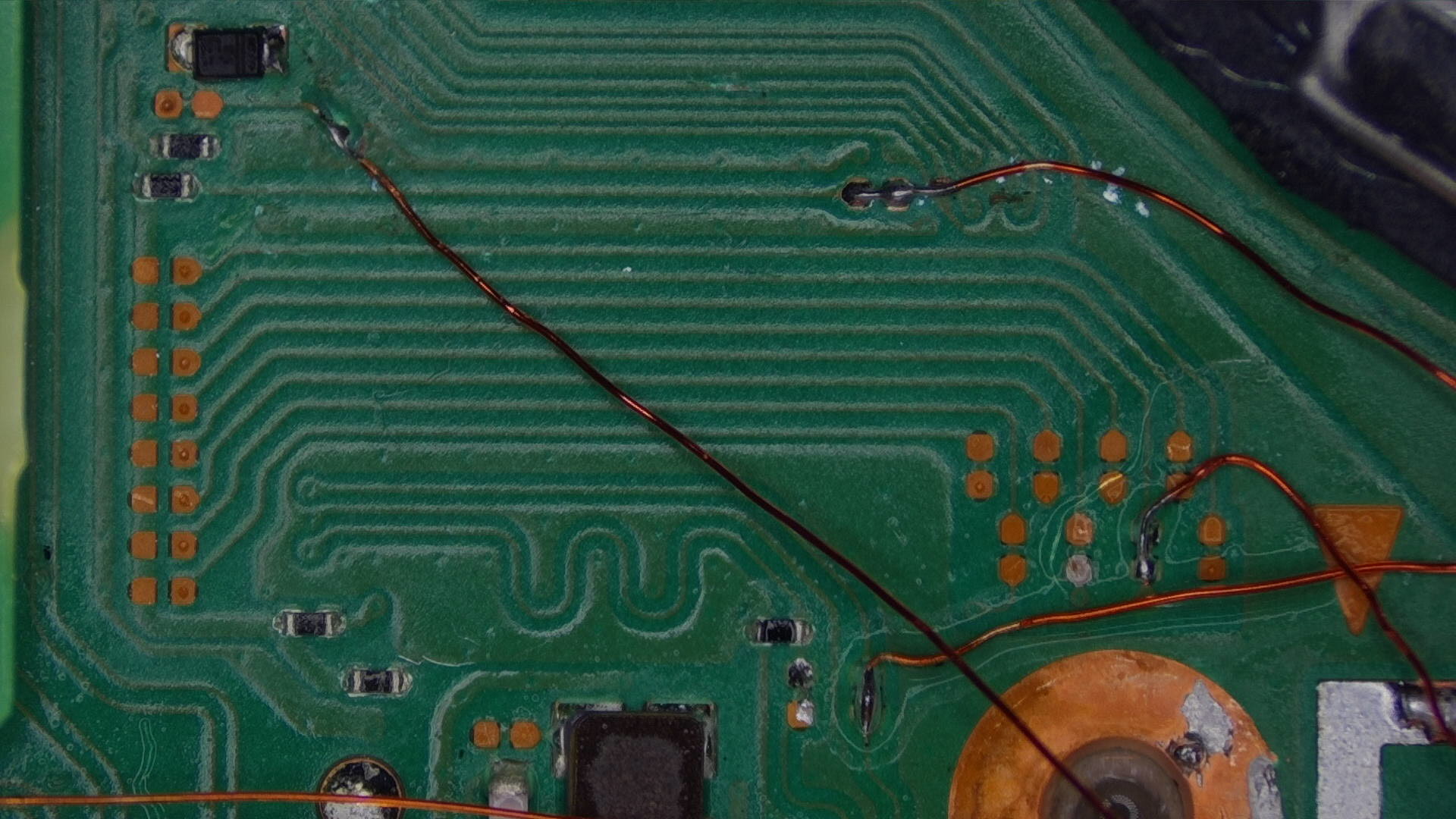

14. Solder the wires onto each point now. Make sure there's a solid connection between the pads on the board and your wire. I've scraped the solder mask off of the via at the B point to make it easier to solder to.

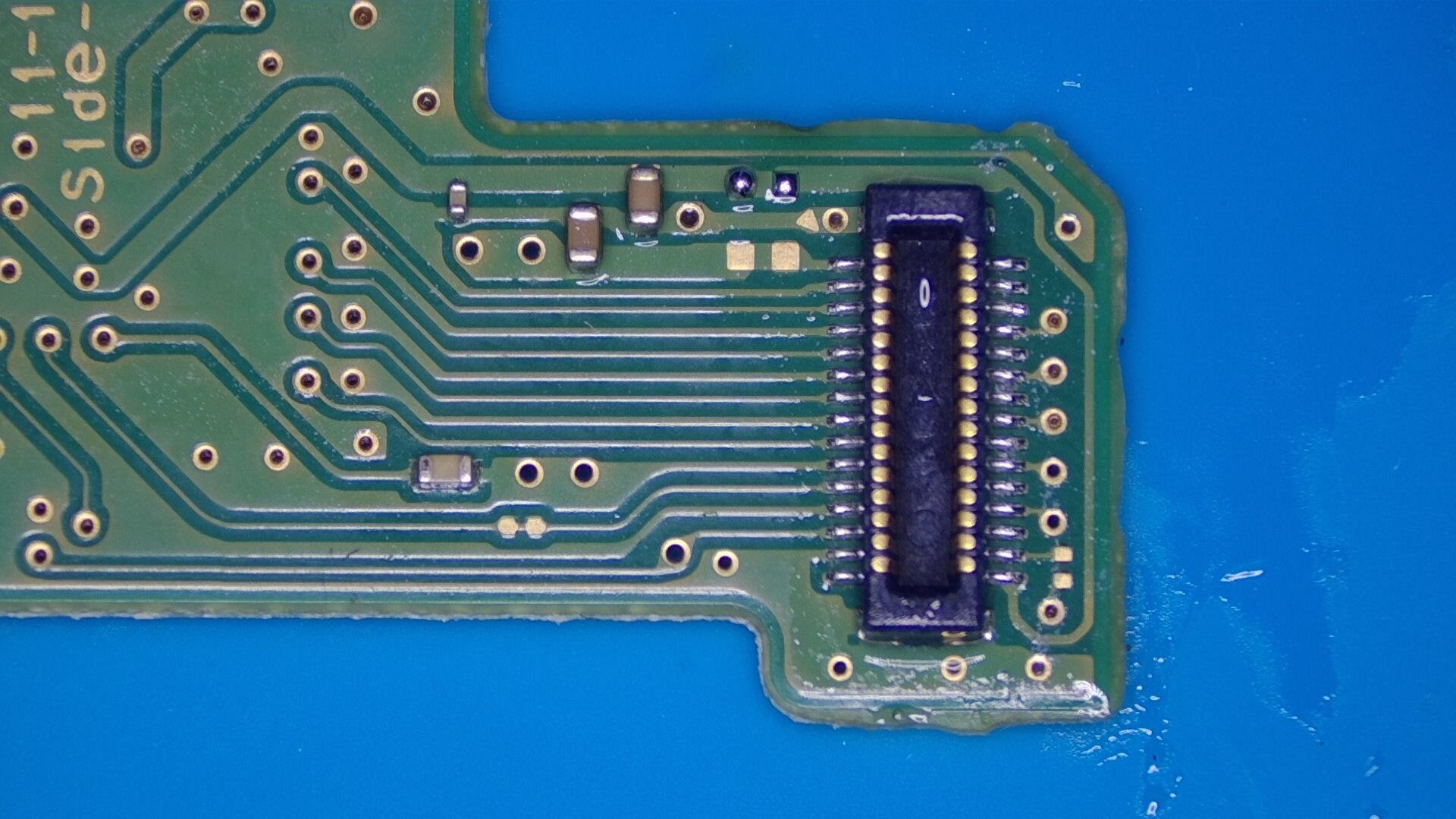

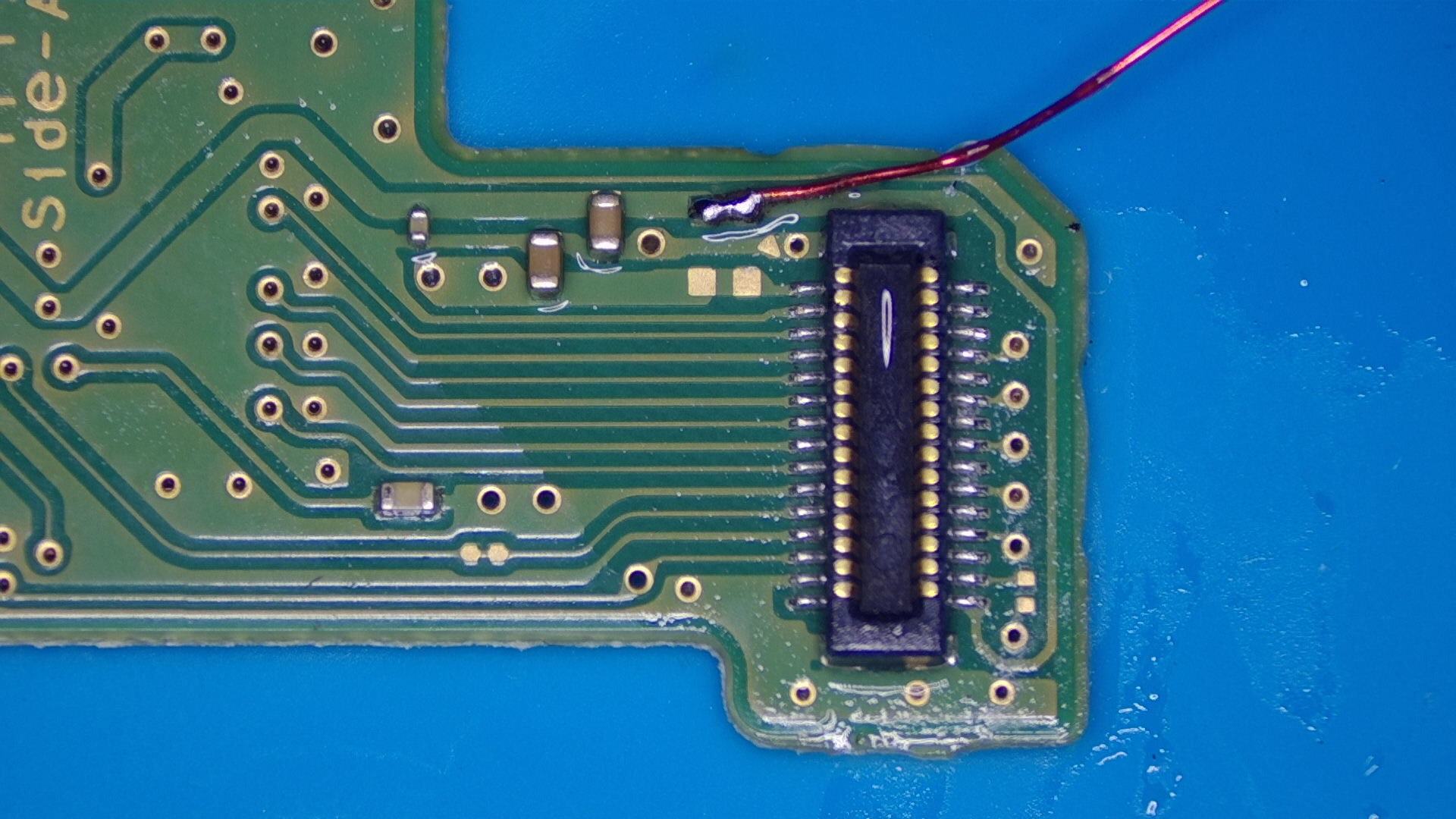

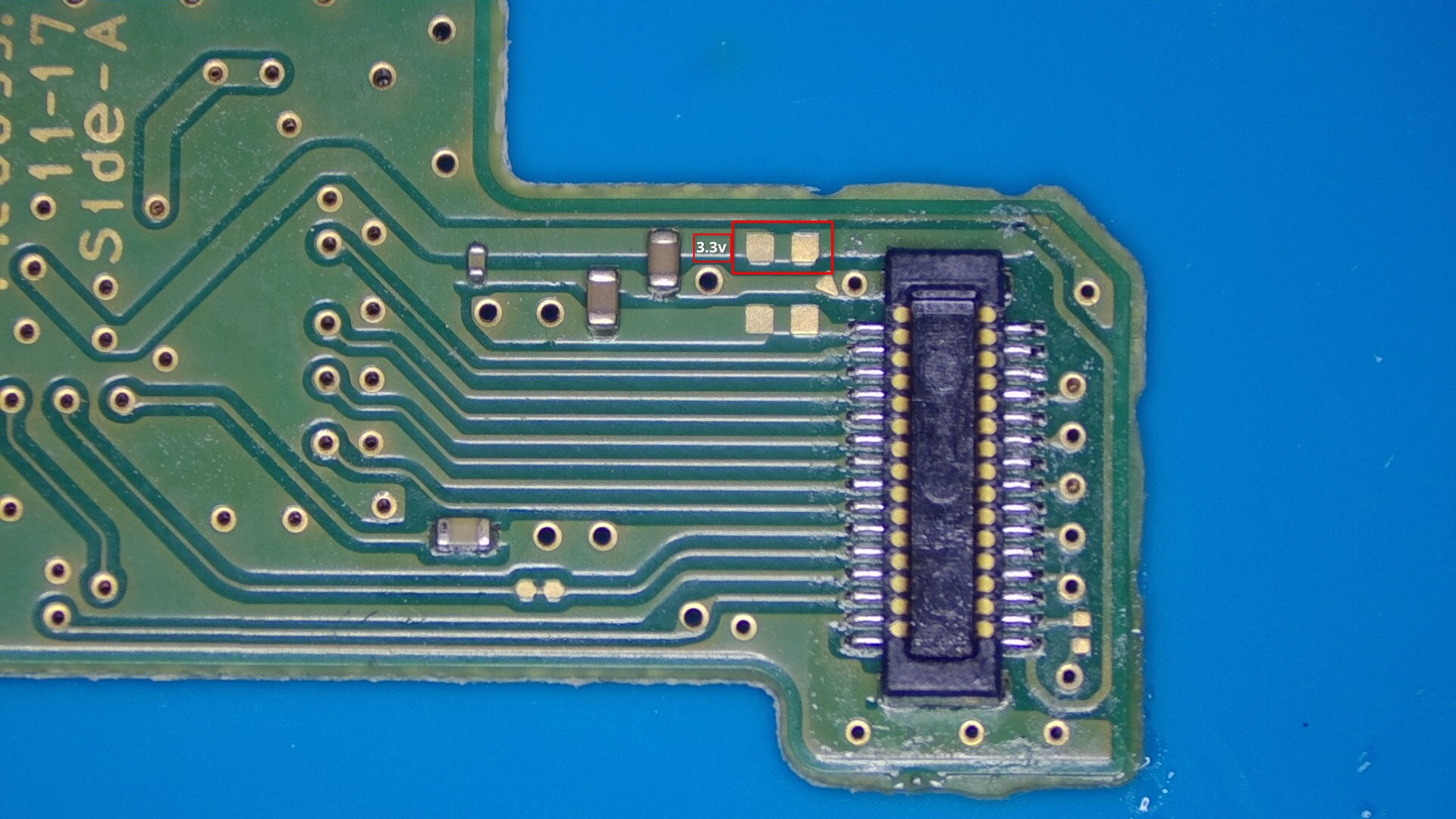

15. Now we will move onto the 3.3v point. I personally recommend using the exposed 3.3v pads on the eMMC module.

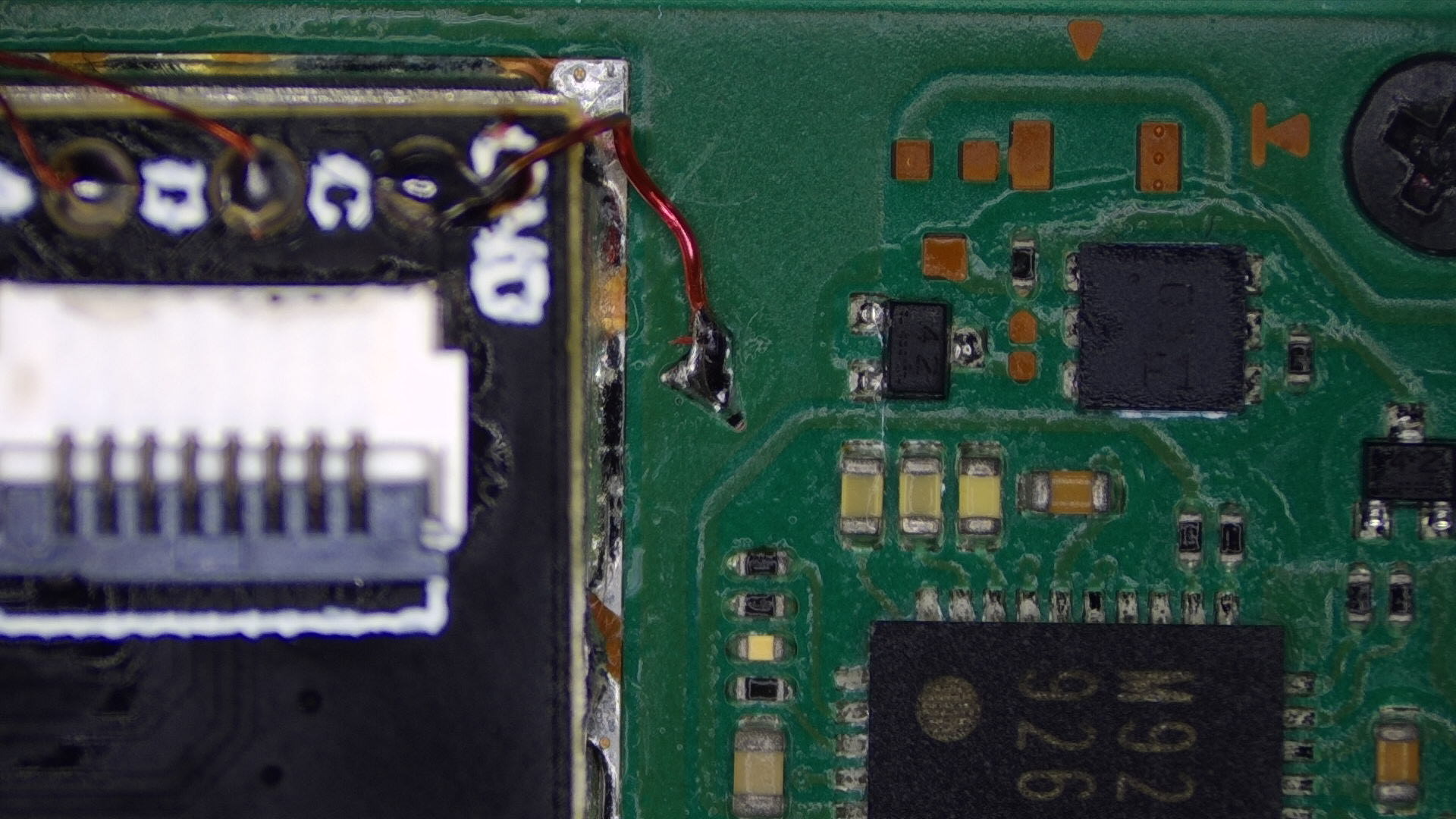

16. Finally, we will move onto the GND (ground) point. You can use any ground point on the board, but I prefer/recommend using the "arrow" on the ground plane to the right of the RAM.

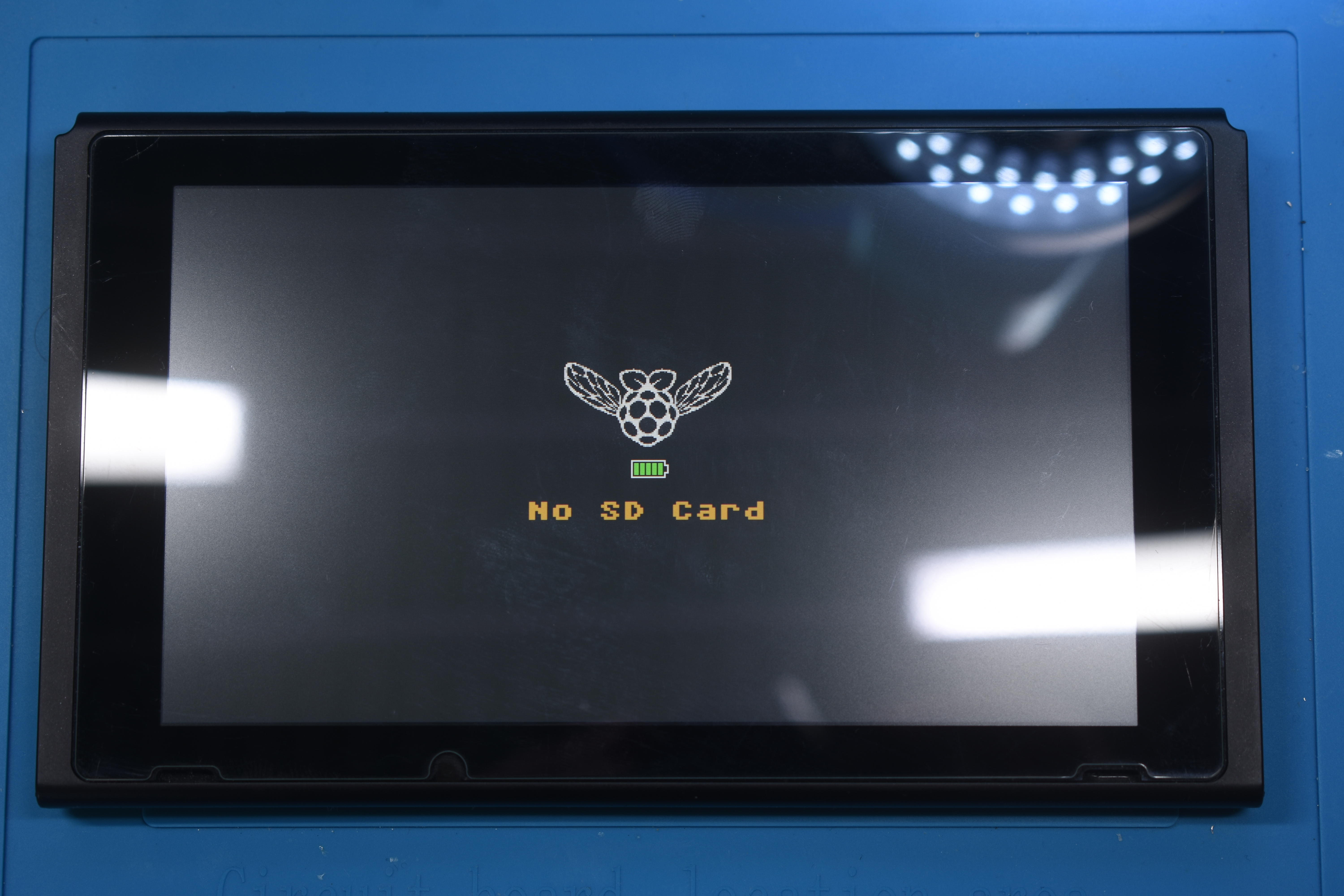

17. Wire up the modchip. Place something non-conductive between the modchip and RAM chips, then power the console on. The modchip will pulse blue/light blue a couple of times (glitching), then yellow (success). You should end up at a No SD Card splash screen with the Picofly logo after the modchip blinks yellow once.

    • Note: Getting to the No SD Card screen does not always indicate success. Sometimes solder joints or electrical connections may be good enough for glitching but not for booting HOS (HorizonOS), please ensure that you test if your console boots by ensuring the console is off, then holding both volume buttons and pressing the power button once, letting go of the volume buttons when you see the Nintendo logo. If your Switch does not boot normally, please check if your console boots by removing the modchip (not the SoC ribbon cable) and turning the console on normally. If you still experience issues related to glitching/training (such as a red error code), refer to the troubleshooting page.

    Note for stock RP2040-Tiny development board users

    Please refer to the pinout at the very top of this page.





18. Modify the IHS so that the SoC ribbon cable can stick out at the top. Bend the folded over side at the top of the SoC section flat with the end of tweezers or another strong flat material.

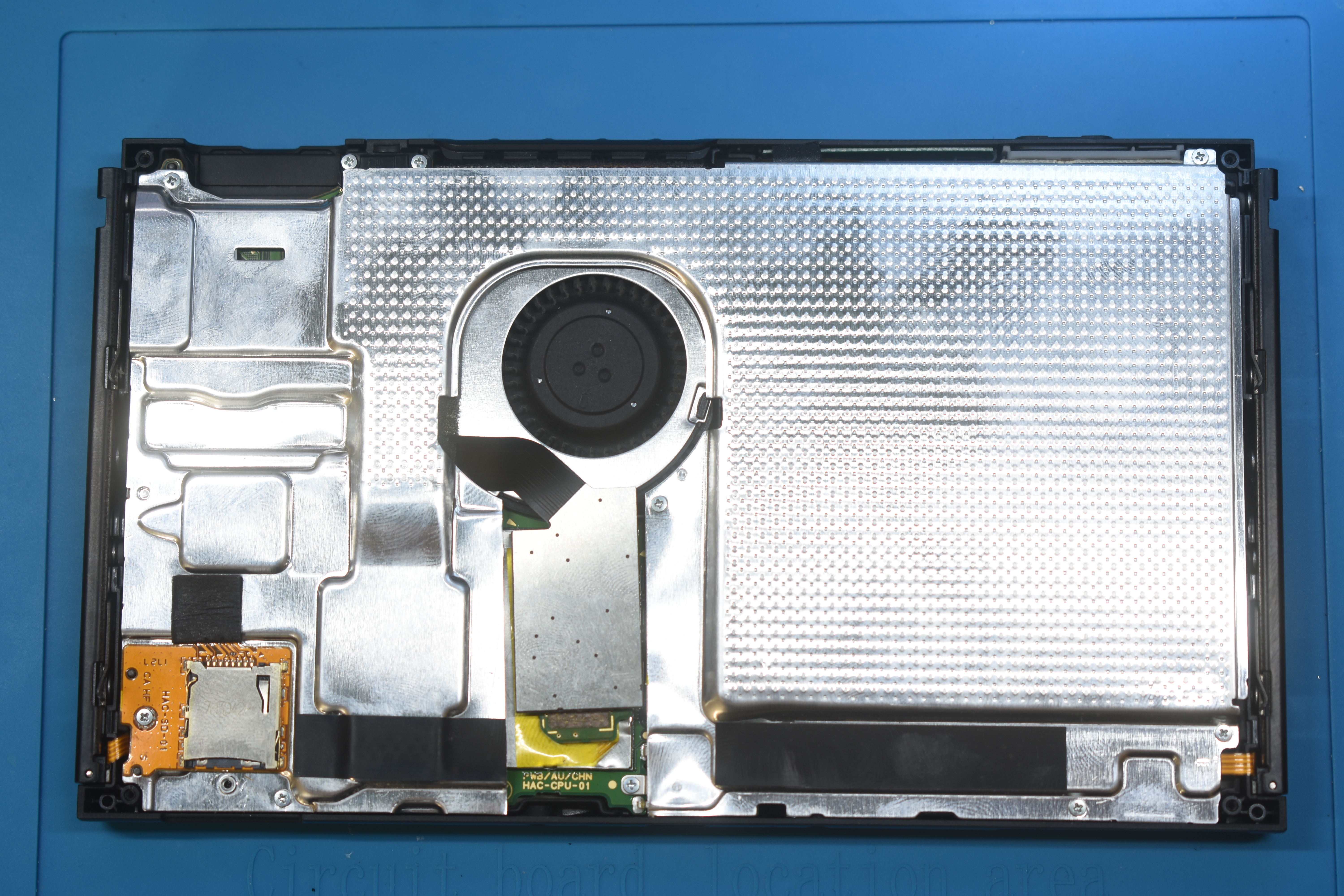

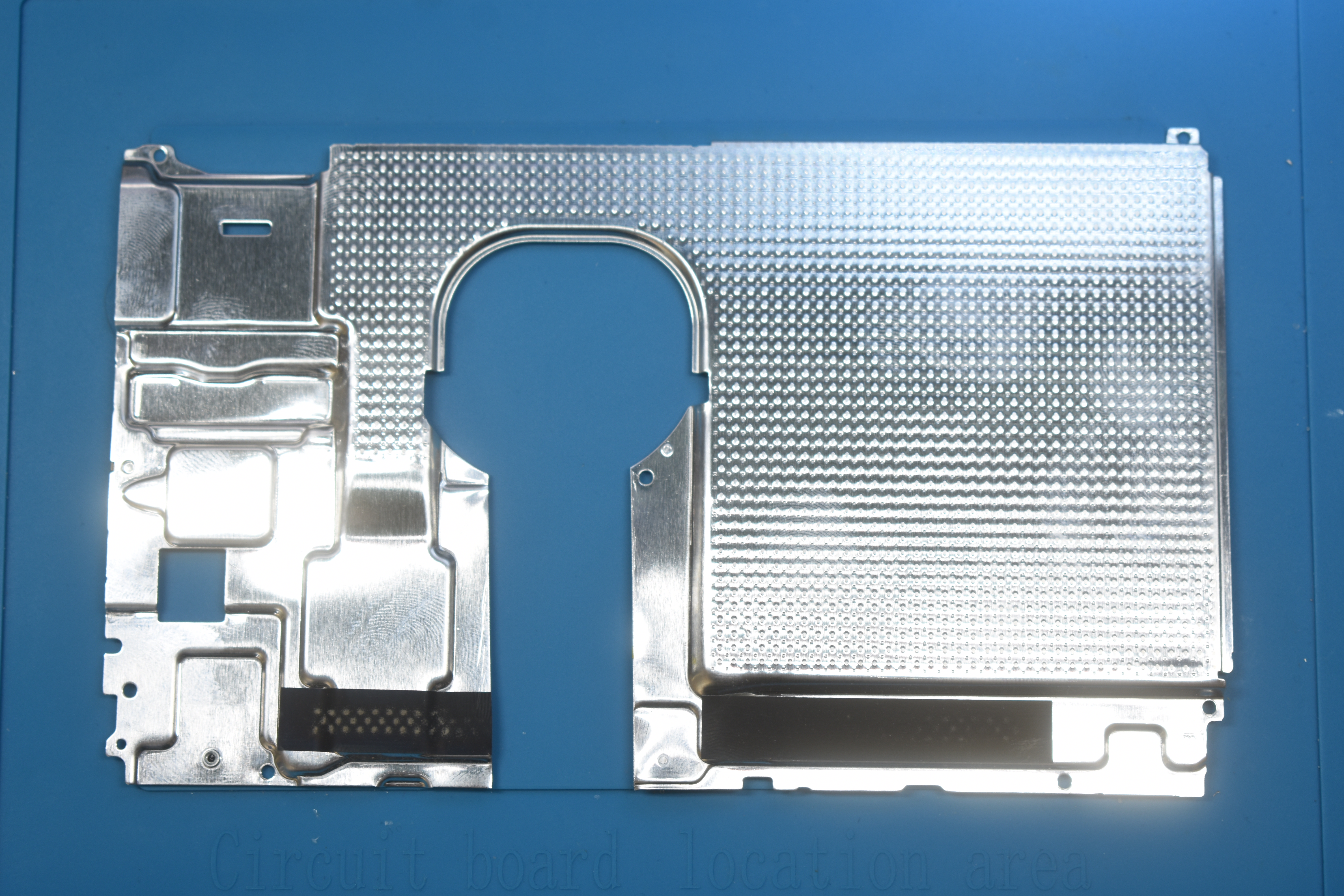

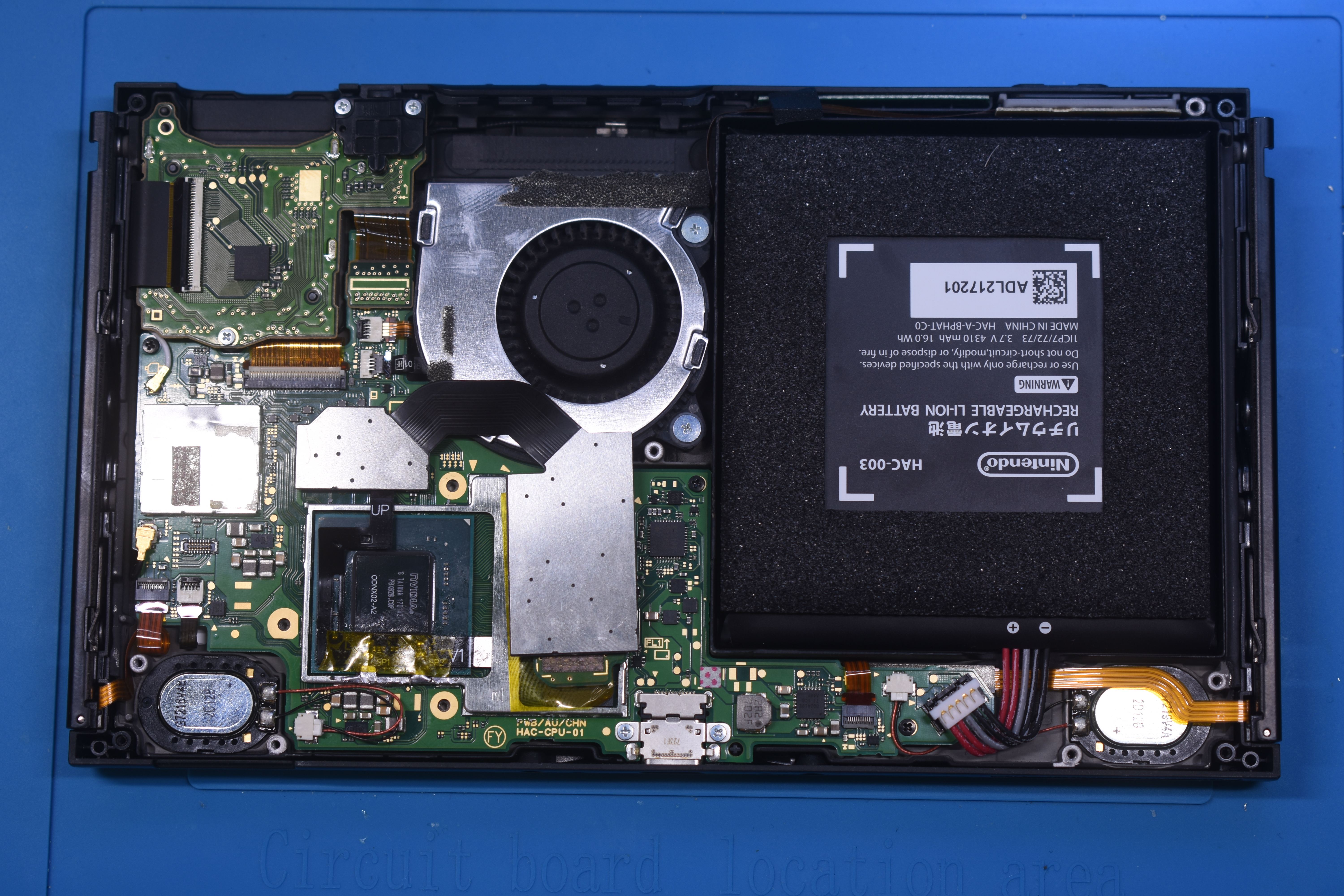

19. Reassemble the console (don't forget to apply thermal paste!) until you're at the point of putting the metal shield/backplate back in place. The modchip will not fit underneath the metal shield/backplate so you will need to cut a strip out of it, how I personally do this is by using regular scissors and cutting out the middle section. You should also make sure that you place an adhesive between the modchip and IHS, so that the modchip is secured in place and doesn't move around when you use the console.

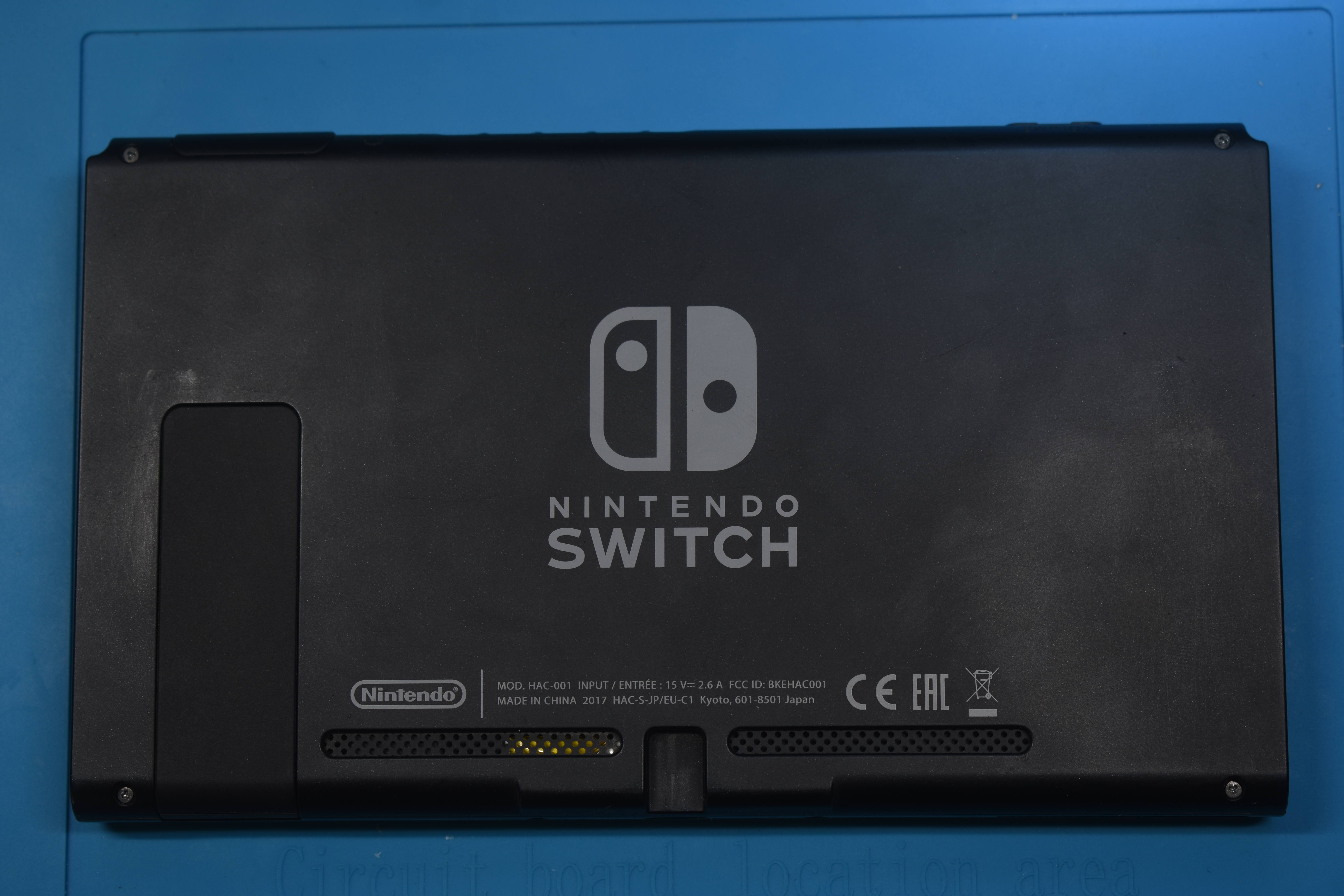

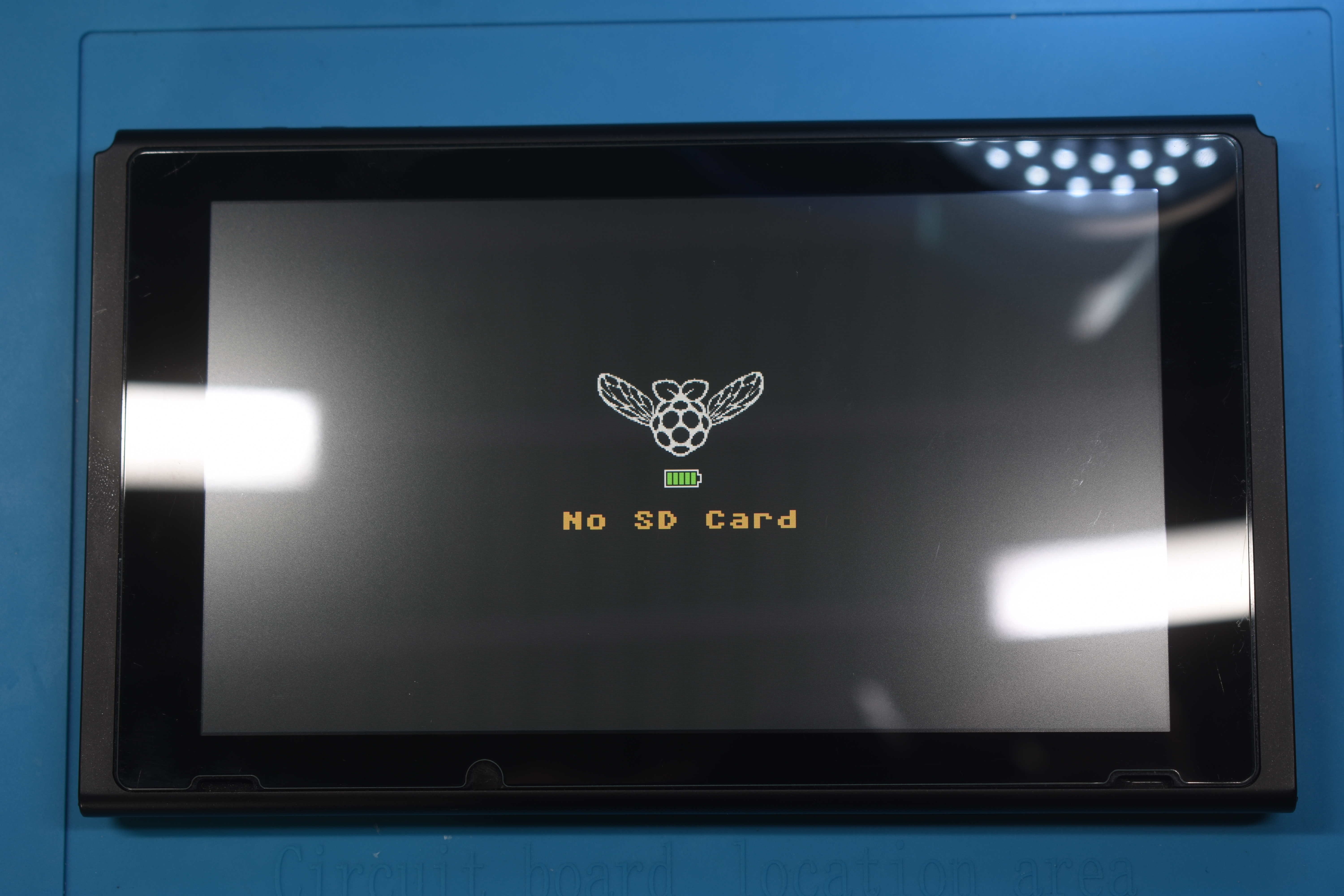

20. Once done, you can fully reassemble the console and your console should now display No SD Card when you turn it on normally.

What's next?¶

From here, if you get the same result as I did, you can continue following the NH Server guide to set up CFW by clicking the button below. If you want to know more about the functionality of modchips, visit the Functionality of modchips page.

If you'd like to donate to me, visit the Credits section.

Continue to the NH Server guide
