Alternative B point

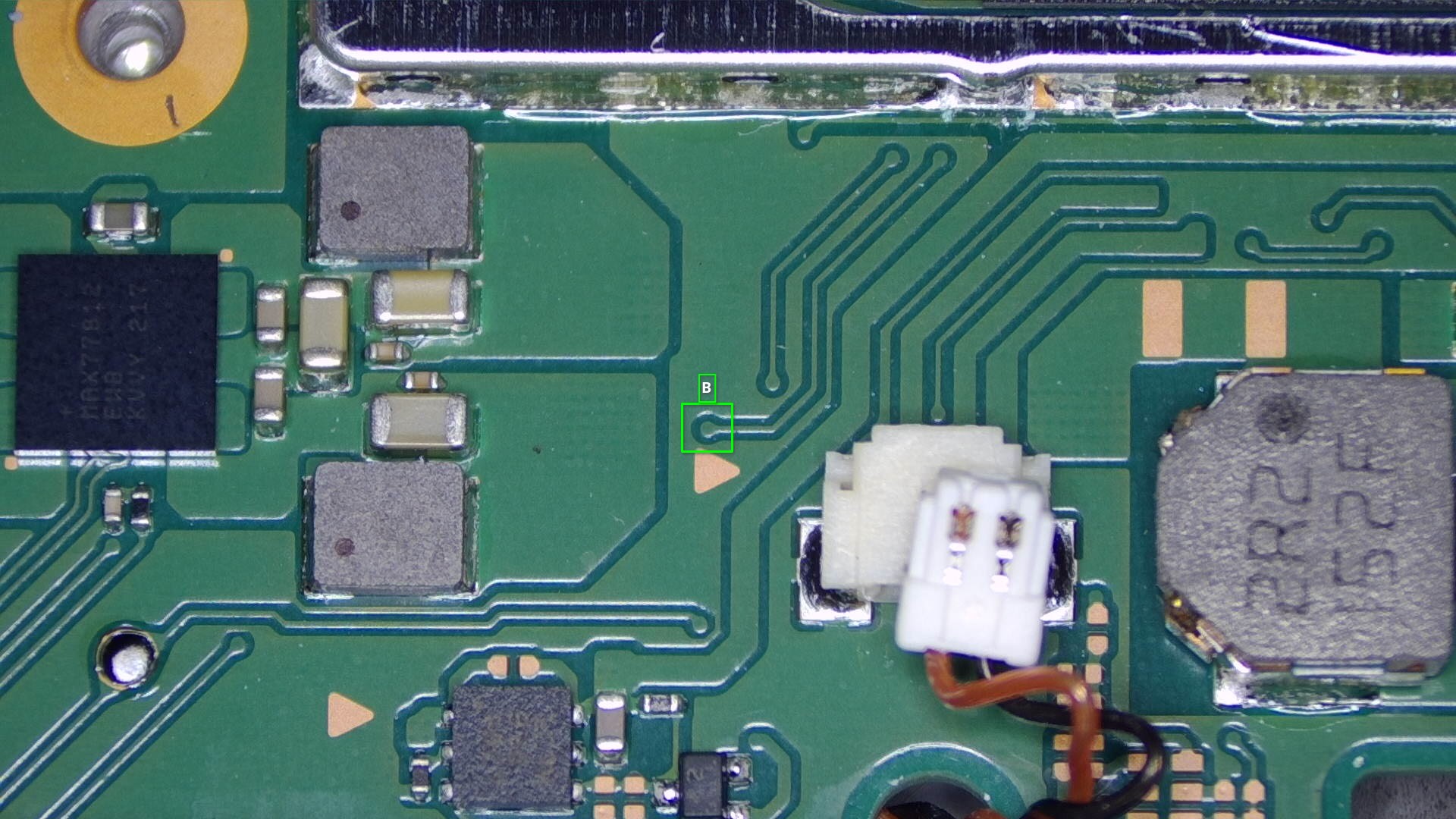

  1. Locate the area beneath the RAM/diagonally left above the left speaker connector. You will see a via above the little "arrow", this is the alternative B point. bare-b

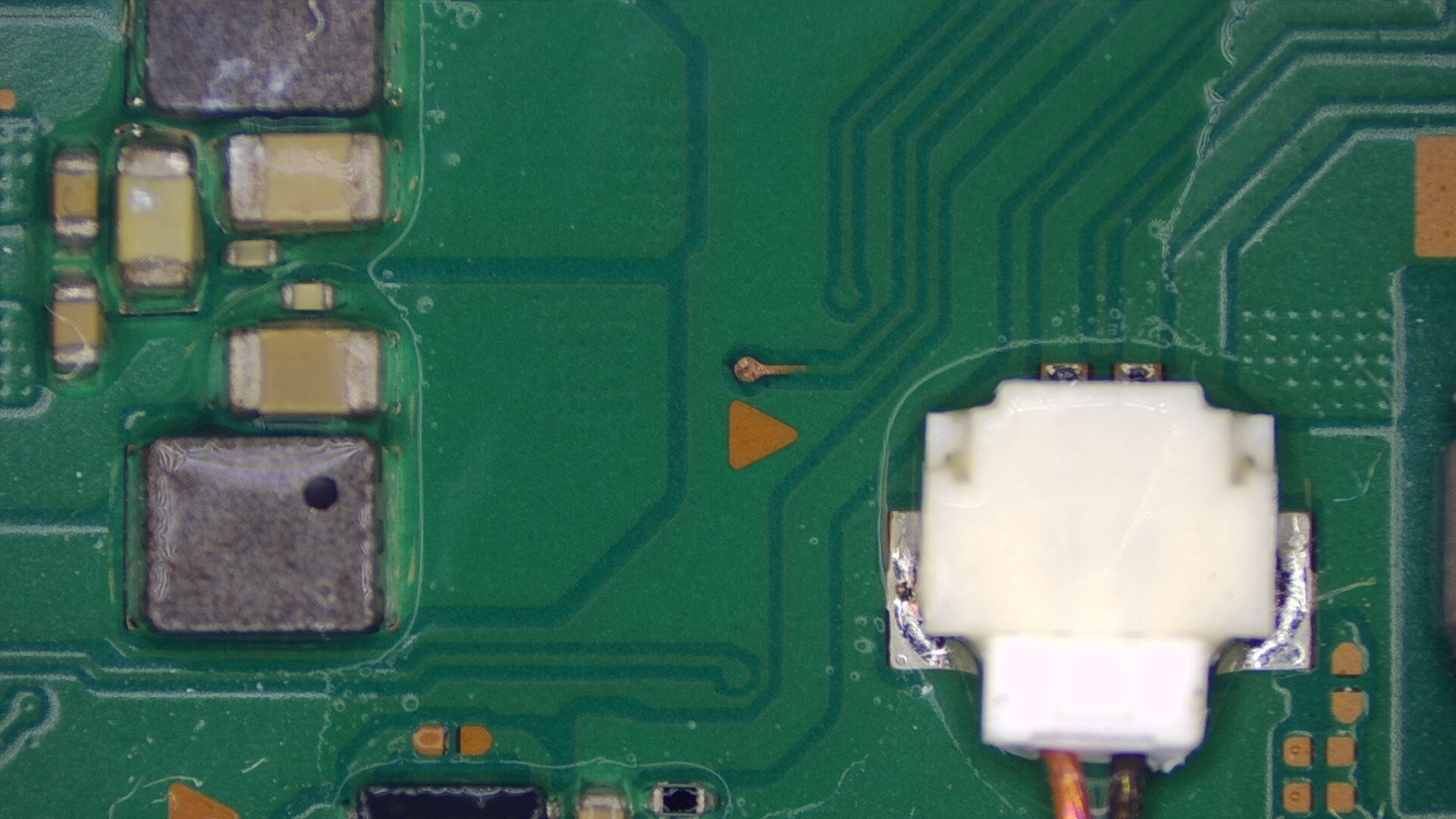

  2. Scrape off the solder mask on top of the via so you're left with exposed copper. bare-b

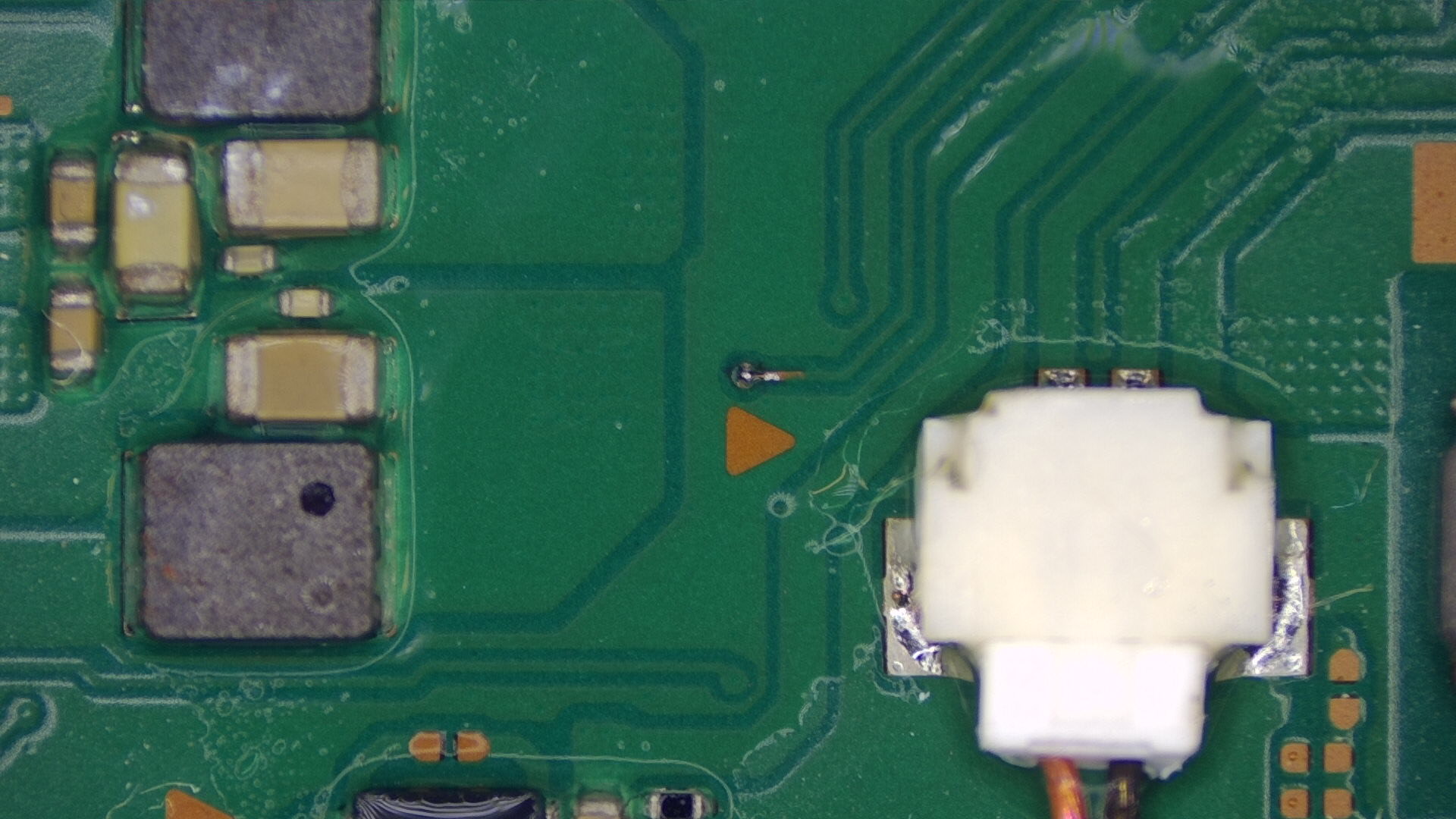

  3. Pre-tin the exposed copper. bare-b

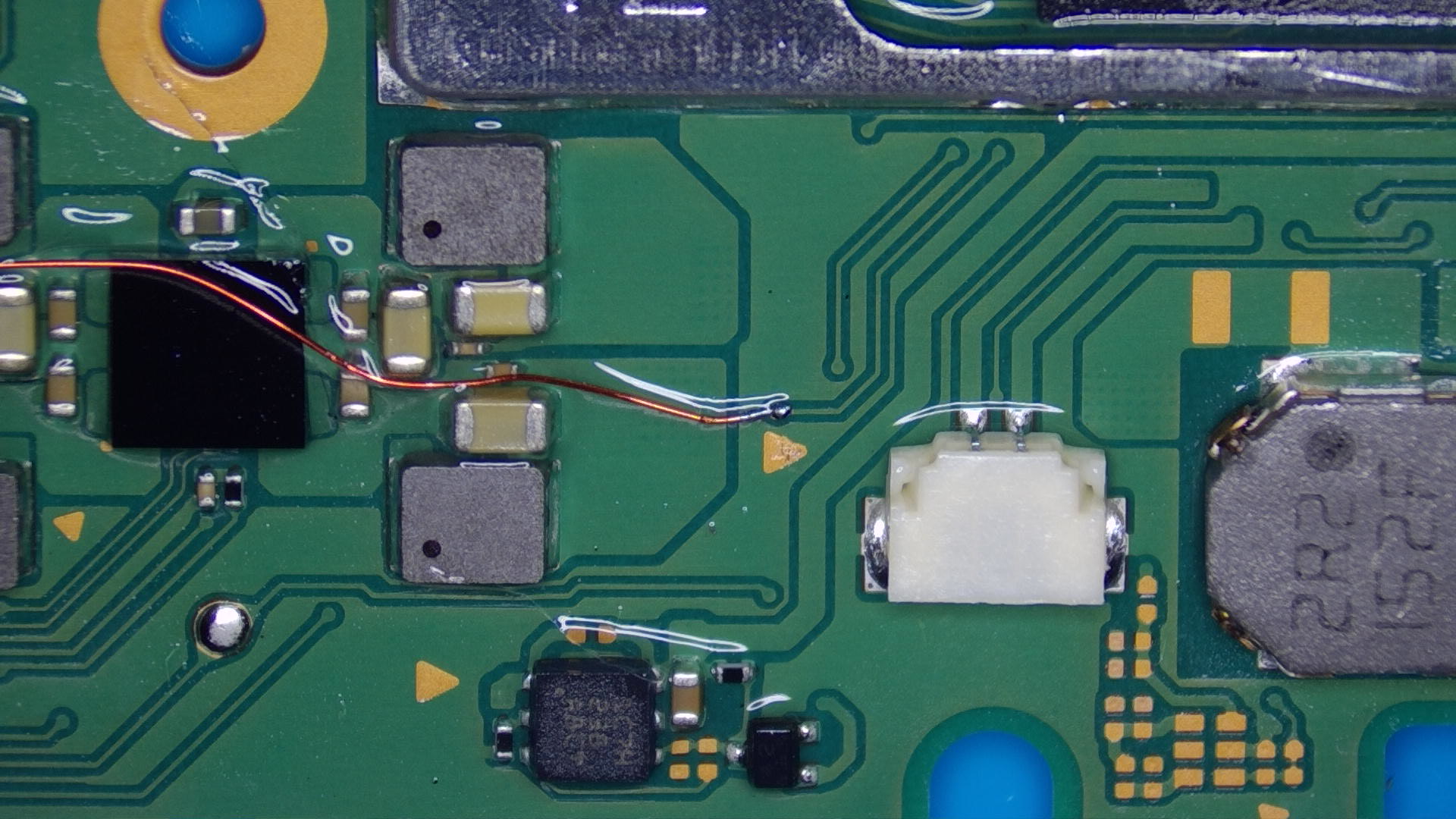

  4. Solder your wire to the via. b-soldered

Everything looking good?

If everything looks good, we will return back to the original installation guide.

Continue to the main Installation guide
